MEGEL-Aerogel Powder
MEGEL-Aerogel Powder
MEGEL-Aerogel Powder

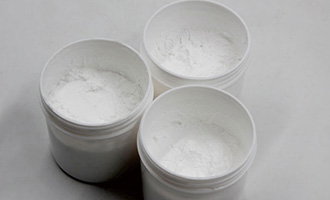

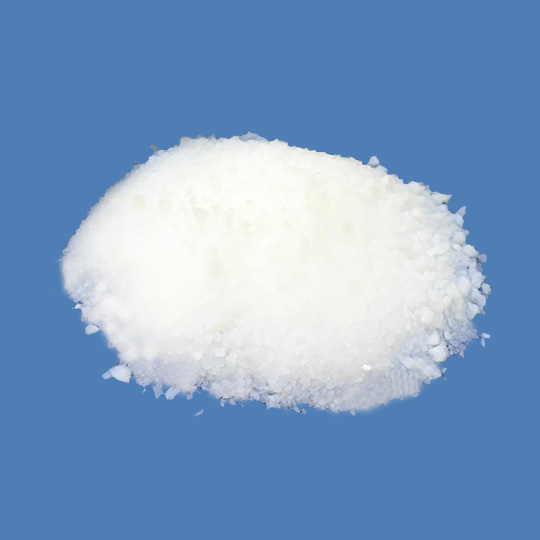

The MEGEL aerogel powder particles refer to silica aerogel particles having a nanoporous structure with excellent thermal insulation properties.
CHARACTERISTIC
TECHNICAL DATA
APPLICATIONS
PACKAGING
CHARACTERISTIC
The MEGEL aerogel powder particles refer to silica aerogel particles having a nanoporous structure with excellent thermal insulation properties. It has lots of features of low density, small pore size, high specific surface area, and high porosity. It can be used in the field of insulation equipment structural interlayer, filling layer, and composite layer.
TECHNICAL DATA
Product Model MG-PD Standardization
Specific surface area(㎡/g) 600-800 GB/T 19587-2004
Packing density(kg/m³) ≤40-60 GB/T 5211.4-1985
Thermal conductivity(25°C)W/(m·k) ≤0.018 ISO 22007-2-2008
 Porosity (%) 90-95 Matrix density backstepping
Aperture (nm) 20-50 Nitrogen adsorption and desorption
Particlesize range(µm) 15-50 GB/T 19077-2016
Surface property  Hydrophobic GB/T 30693-2014
Color White GB/T 5950-2008
Package Packed in cartons, bags or buckets according to customer’s requirement.
























Note: The above is an average data measured by the general test method. It is for reference only and cannot be used as the product quality assurance value. With the product update, the data will be adjusted, and please refer to the actual index in the contract.

APPLICATIONS
(1) Spinning applications.
(2) Thermal insulation coatings.
(3) Sound insulation materials.
(4) Insulating foamed sheet filler.
(5) Adsorption of organic liquid.
(6) Prefabricated insulation pipe.
(7) Cold-proof clothing filler.
PACKAGING
Packed in boxes, bags, or buckets according to customer’s requirement. We recommend storing the product in closed containers under dry conditions and to protect the material from volatile substances. Also, please do not touch the package with sharp objects for fear of leakage.
