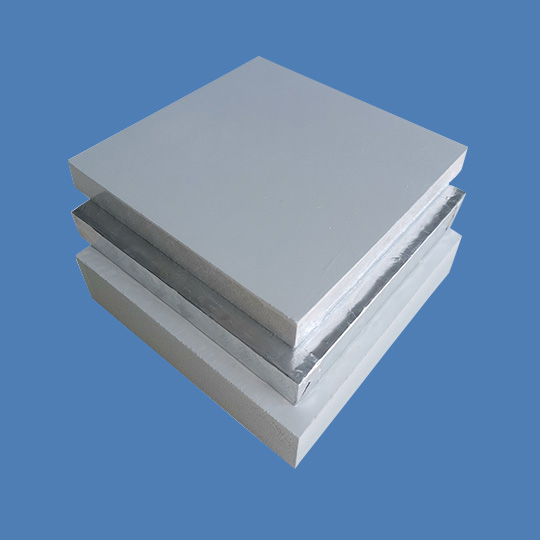

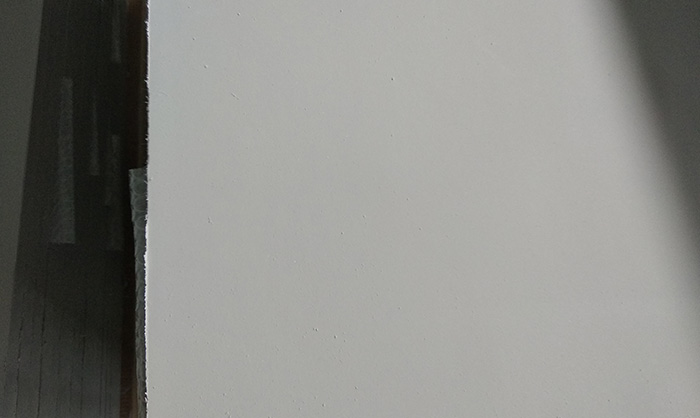

Microporous Insulation Panel M1000
M 1000 is one panel shaped insulation material basing on fumed silica mainly and other components like opacifiers and fibers. The maximum application temperature of M1000 can reach 1100℃. It offers the best lambda especially at higher temperatures.
CHARACTERISTIC
TECHNICAL DATA
APPLICATIONS
Packaging & Storage
CHARACTERISTIC
M 1000 is one panel shaped insulation material basing on fumed silica mainly and other components like opacifiers and fibers. The maximum application temperature of M1000 can reach 1100℃. It offers the best lambda especially at higher temperatures.
M 1000 series would provide different models: M 1000-Max, M1100, M 1000-L and M 1000 for different requirements of customers and also different application conditions.
AVAILABLE OPTIONS
▪ Customized dimensions
▪ Aluminum foil packing
▪ Aluminum lamination foil packing
▪ POF foil packing
▪ Vacuum packing
▪ Super Strong Version: 30% more Flexural Strength, better rigidity !!!
TECHNICAL DATA
Product Type M 1100 M 1000-Max M 1000-L M1000
Max. Application temperature     1100 1000 1000 1000
Shrinkage value                          (900℃, 12 hours) - ~ 0.8% ~ 1.5% ~ 1.5%
Flexural strength                         N/mmMpa 0.12 0.12 0.14 0.12
Specific heat capacity                 KJ/kg K ~ 0.9 ~ 0.8 ~ 0.8 ~ 0.9
Thermal conductivity W/m k W/m k W/m k W/m k
20 0.021 0.02 0.019 0.02
200 0.024 0.022 0.022 0.022
400 0.028 0.025 0.026 0.025
800℃ 0.04 0.035 0.036 0.035
Electric resistance ≥ 2000 MΩ ≥ 2000 MΩ ≥ 2000 MΩ ≥ 2000 MΩ
Fire protection class DIN ISO 4102 A1 A1 A1 A1
Color Grey Grey Grey Grey

APPLICATIONS

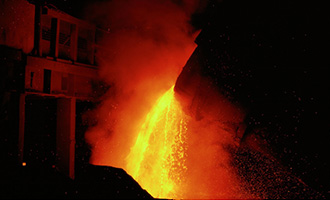

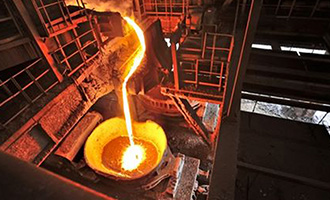

▪ Ferrous and non-ferrous industry

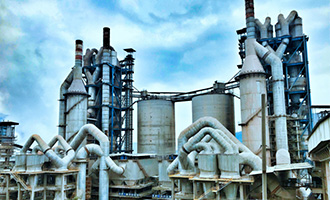

▪ Cement Industry
▪ Ceramic Industry
▪ Glass Industry
▪ Petrochemical industry
▪ Regenerative heater
▪ Renewable energy
▪ High temperature fields

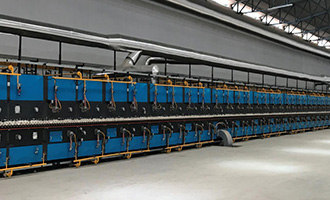

▪ Industrial kilns and furnaces
▪ Food processing ovens

Packaging & Storage
AVAILABLE DIMENSIONS

Sizes: 1200x600 mm, 1000 x600 mm
Thickness: 5–50 mm
Customized dimensions

METHERM standard sized board (1000*600*25mm) would be packed by honeycomb pallet carton with 76 pcs quantity in each pallet. And the size of pallet would be 1120x1420x1100 mm and 20’ GP FCL can full-load 16 pallets. The packaging also could be customized according to your order.

The board products must be handled and stored in dry and ventilated conditions.
