Silicon dioxide (silica) is a versatile material found in many forms and used across industries—from bulk crystalline sand to high-tech fumed silica powders. Proper storage and transportation are critical to maintaining silica’s quality and to ensure safe handling. This article explores various silica forms and provides industry-focused guidance on how to store and transport them effectively. Topics include moisture control, packaging solutions, regulatory considerations, bulk storage systems, nano-silica precautions, temperature management, safety protocols, long-term quality preservation, specialized transit for liquids, sustainability, digital inventory tracking, application-specific practices, and emergency measures. The goal is to offer practical insights that help professionals keep silica materials in prime condition through the supply chain.

1. Understanding Silicon Dioxide Varieties: From Crystalline to Amorphous Forms

Silicon dioxide exists in multiple forms with distinct properties. Broadly, silica can be crystalline (like quartz sand) or amorphous (like fumed or precipitated silica). Key industrial varieties include: fumed silica (pyrogenic silica), colloidal silica, precipitated (silica) powder, and naturally occurring crystalline silica. Each type differs in particle size, surface area, and handling needs.

• Fumed silica – An ultra-fine, fluffy powder made by flame hydrolysis. Particles are nano-sized (primary particles ~7–40 nm) that form chains and agglomerates​. It has an extremely high surface area (100–400 m²/g) and very low bulk density (~30–60 kg/m³)​. This leads to a light, airy powder that is difficult to handle—it is prone to airborne dust and static and readily adsorbs moisture. Fumed silica is usually amorphous (non-crystalline).
• Colloidal silica – A liquid dispersion of nano-size amorphous silica particles in water (typical solids ~30%). The particles (5–100 nm) are stabilized in solution, so the product is a viscous liquid or slurry rather than a powder. Colloidal silica is dust-free to handle but requires care to prevent settling or gelation. It is often alkaline to stay stable and is sensitive to freezing (which irreversibly aggregates the silica).
• Precipitated silica (silica powder) – A fine amorphous powder produced by chemical precipitation. Particles are larger (micron-scale) than fumed silica and more dense. The surface area is intermediate (e.g., 50–200 m²/g), and it is a bit less hygroscopic. Precipitated silica is used as fillers (tires, rubber), thickeners, or anti-caking agents. It can generate dust if dry, but because of higher bulk density it’s easier to contain than fumed silica.
• Crystalline silica – e.g. quartz sand or flour, with a well-ordered lattice. Particle sizes range from grains (hundreds of microns) to fine powders. Surface area is low, and it does not absorb moisture like porous amorphous forms. However, fine crystalline silica dust is a well-known health hazard (respirable quartz can cause silicosis)​. Crystalline silica is heavy and stable but requires strict dust control during handling.

Table 1: Comparison of Common Silicon Dioxide Forms

As shown above, amorphous silicas (fumed, precipitated, colloidal) tend to have high surface areas and may be chemically reactive or absorbent, affecting how we store/ship them. Crystalline silica is chemically stable but poses unique safety requirements (airborne dust hazard). Thus, each form has different handling needs: for example, fumed silica’s fluffiness demands special anti-dust measures, whereas colloidal silica’s liquid nature means preventing freezing is a priority. Understanding these differences is the foundation for developing proper storage and transport strategies.

2. Environmental Sensitivity: Moisture Control and Contamination Prevention

Many silicon dioxide products are highly sensitive to moisture and contaminants in the environment. Hydrophilic fumed silica is notorious for absorbing water vapor from air: its surfaces are covered in silanol (–OH) groups that readily bond with moisture. If left exposed, fumed silica can double its weight in moisture within minutes​. This causes the powder to clump and lose effectiveness (e.g. reducing its thickening power). To prevent this, storage must minimize humidity exposure. Manufacturers pack fumed silica in multi-layer moisture-barrier bags, often a paper bag with an inner plastic liner​. Once opened, the material should be used quickly and resealed, because even brief air contact can significantly increase its moisture content​.

Other forms of silica also need humidity control: precipitated silica will cake or harden if it picks up moisture, and silica gels (desiccants) can become spent. Recommended measures include:

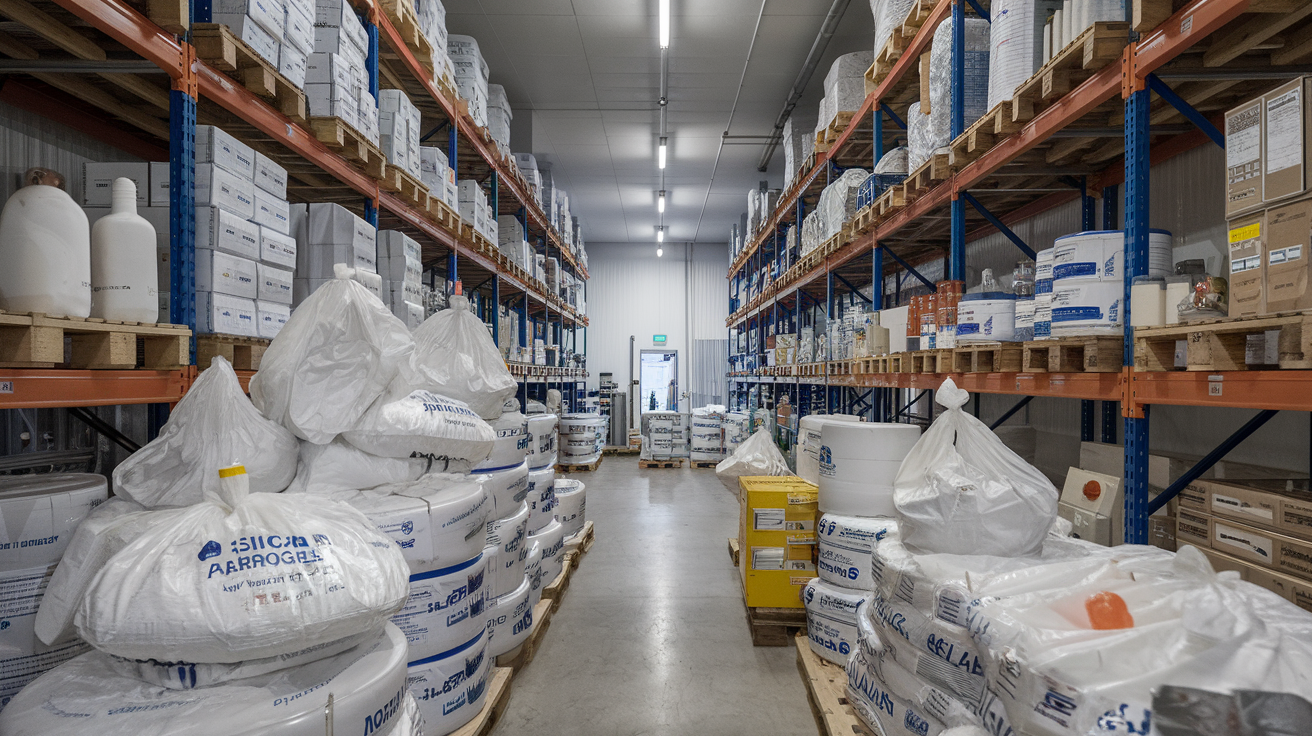

• Dry Storage Environment: Store silica in a cool, dry area with low relative humidity. For example, keep warehouses under 50% RH if possible. Use dehumidifiers in storage areas for hydrophilic grades.
• Sealed Containers: Always keep silica in airtight containers when not in use​. For powders, seal bags or drums immediately after opening. For liquids, use drums/IBCs with tight-fitting lids or caps to prevent evaporation and contamination.
• Desiccants and Liners: Include desiccant packs in packaging if appropriate (for ultra-sensitive materials) and use polyethylene liners inside fiber drums or bags to create a moisture barrier. Pallets of bagged silica are often shrink-wrapped in plastic for added protection​.
• Avoid Concrete Floors: Store bags off the ground (on pallets) to prevent moisture wicking from floors. Ensure the storage area floor is dry and, if needed, use vapor barriers.

In addition to moisture, contamination control is important. Amorphous silica with high surface area can adsorb organic vapors or odors from the environment. Fumed silica should be kept away from volatile chemicals; Evonik recommends storing it “protected from volatile substances” to avoid tainting the product​. Cross-contamination between different silica grades should be avoided by dedicating scoops, hoppers, or silos to a specific grade or thoroughly cleaning equipment between batches.

Moreover, hydrophilic vs. hydrophobic silica behave differently with moisture. Untreated (hydrophilic) fumed silica will grab water from air, whereas surface-treated hydrophobic silica (treated with silanes) resists moisture uptake​. Using hydrophobic grades can alleviate moisture issues (they stay free-flowing in humid conditions), but even they should be stored dry to maintain their treatment effectiveness.

For colloidal silica (water-based) products, microbial growth is a contamination concern. Impurities or organic matter can breed bacteria or mold in the liquid over time. Good hygiene is needed: containers should be clean, and if large storage tanks are used, they may require biocide additives or periodic cleaning to avoid biofilm formation​. Colloidal silica should be kept in closed tanks to prevent dust, insects, or debris from entering.

Bottom line: Keep all forms of silica dry, clean, and sealed. By controlling moisture and contaminants, you prevent product degradation (like fumed silica turning into a heavy gel if wet​) and ensure the silica performs as intended when used.

3. Packaging Solutions for Industrial Silica Products

Selecting the right packaging is crucial to protect silica during storage and transit. Packaging must address silica’s specific challenges: controlling moisture, containing fine powders, dissipating static, and preserving particle integrity. Common packaging solutions include:

• Multi-layer bags for powders: Fumed and precipitated silica are often packaged in multi-wall paper bags with an inner plastic liner for moisture protection​. The plastic liner or coating prevents humidity ingress and also helps contain the very fine powder. These bags are usually stacked on pallets and stretch-wrapped in plastic film for added protection and stability.
• Fiber drums and pails: For some silica powders (or gel granules), fiberboard or plastic drums are used. Drums (typically 50–250 kg capacity) offer sturdiness and can be tightly sealed. They are often lined with plastic bags as well. Drums are advantageous for higher volume users who need easier access than small bags, and they stack well. However, drums are bulkier and more expensive packaging. In some cases, smaller pails (e.g. 5-gallon pails with screw-top lids) might be used for specialty silica or laboratory use, to keep the material dry and uncontaminated.

• Flexible Intermediate Bulk Containers (FIBC): For large quantities, bulk bags (FIBCs) are common. These are woven polypropylene big bags (often holding ~200–500 kg of silica) with lifting loops​. FIBCs greatly reduce packaging waste and handling effort. However, due to silica’s fine particle size, the FIBC fabric usually has a polyethylene liner or very tight weave to prevent powder leakage. Special antistatic FIBCs (Type C or D bags) may be used for fumed silica to safely dissipate static charges during filling or emptying​. FIBCs should be kept dry (some come with foil liners for moisture-sensitive grades). They require forklifts or hoists for handling. A Powder Emptying System can be attached to the outlet spout of the FIBC to discharge silica dust-free​.
• Moisture-resistant sacks: Hydrophilic silica like standard fumed silica is always packed with moisture in mind. A producer notes “three-layer kraft paper bag with a plastic layer” is standard, and even then, once opened, the material should be used ASAP​. For silica that must remain ultra-dry, some suppliers use foil-lined bags or vacuum-sealed packaging.
• Special containers for liquids: Colloidal silica, being a liquid, is packaged in tightly sealed plastic or steel containers. Common sizes are HDPE carboys or pails (20–50 L) for smaller quantities, 55-gallon drums (~208 L), and IBC totes (1000 L) for bulk​. Since freezing is a risk, some shipments use insulated or heated containers in cold weather​. Caps or bungs on these containers must be secure to prevent CO₂ or contaminants from entering (which could destabilize the colloid).
• Anti-static and safe handling features: Fine silica powders can generate static electricity when they move or rub against packaging. To mitigate this, packaging might incorporate anti-static additives or require grounding during handling. For example, when unloading fumed silica from bulk bags, facilities ensure the equipment is grounded and sometimes use conductive bag materials​. This prevents sudden discharges of static that could startle workers or damage electronics. While silica dust itself is not flammable, static control is still “integral to the safe movement of fumed silica”​ for operational safety.
• Protecting particle integrity: In some high-end applications (like aerogel precursors or colloidal silica for polishing), it’s important that silica particles are not damaged or aggregated. Thus, gentle packaging (no excessive compaction) is used. Generally, normal handling and vibration in transit are acceptable for silica—there’s no risk of “settlement” like with heavier solids, but excessive compression of fumed silica can cause caking.

In summary, packaging is tailored to silica type: powders go into multi-wall bags or drums with moisture barriers, large users get FIBCs or silo deliveries, and liquid silica goes in drums or totes. All packaging is clearly labeled with the product name, grade, and batch for traceability​. Ensuring the packaging is robust (won’t tear or leak fine powder) and sealed against the elements will maintain the silica quality from factory to end-user.

4. Transportation Considerations for Hazardous and Non-Hazardous Silica

Transporting silica safely and in compliance with regulations involves understanding its hazard classifications and following best practices for shipping. A key point is that silicon dioxide (SiO₂) is generally not classified as a “hazardous material” for transport under international regulations (it’s not flammable, corrosive, explosive, or toxic). For example, crystalline silica (quartz) has no DOT hazard class or UN number​, and amorphous silica like fumed or colloidal silica is typically shipped as non-regulated freight​. This means specialized hazardous material labels (e.g. UN “dangerous goods” placards) are usually not required for silica shipments. However, there are still important considerations:

• OSHA Hazard Communication: In the workplace, OSHA treats respirable crystalline silica as a serious health hazard. Any shipment of material containing >0.1% crystalline silica that could become airborne requires appropriate hazard labeling under OSHA’s HazCom Standard​. This means if you’re transporting bags of silica powder (even though DOT doesn’t consider it hazardous), the containers should have warning labels for workers (e.g., “DANGER: Respirable Silica – Can Cause Lung Disease” and include a silica Safety Data Sheet with the shipment. Amorphous silicas are less harmful, but suppliers often still provide SDS and recommend PPE for handling dust. OSHA’s Permissible Exposure Limit (PEL) for silica dust in air is 50 µg/m³ (8-hr TWA)​, so transport and unloading procedures must aim to keep dust below that level (through packaging integrity and careful handling).
• REACH and international regulations: In the EU, substances are regulated by REACH/CLP. Amorphous silicon dioxide is generally not classified as hazardous under CLP (no hazard pictograms)​, but it still must be registered and accompanied by proper documentation if shipped in quantity. Ensure SDS documents are available in the required languages and that the product is registered/exempt under REACH if exporting to Europe. Some forms of silica (like synthetic amorphous silica) have REACH dossiers confirming their safe use. Always check if any local regulations classify your specific silica grade differently (for instance, certain nano-silica might have special provisions in some countries).
• Hazardous vs Non-Hazardous Distinction: While silica itself is usually non-hazardous in transport, consider any additives or coatings. For example, silica gel packets that contain Cobalt(II) chloride (a moisture indicator) would be hazardous (toxic) due to the cobalt compound. Pure silica is inert. Colloidal silica solutions are basically water and silica – not hazardous. Verify the HS code or CAS of your product to be sure no hidden regulated component exists. If truly non-hazardous, shipments can be handled as general cargo, but if there’s any classification (like “IRRITANT” for some silica gels), abide by those.
• Proper Packaging and Securing: Regardless of hazard class, prevent spills or leaks during transit. Fine silica powder escaping a broken bag in a truck can create a mess or dust cloud. Thus, ensure pallets are shrink-wrapped, bags are intact, and FIBCs are properly tied off. For bulk powder transport (in tank trucks or railcars), make sure hatches are secure and gaskets in place to avoid dust emission. Vehicles should be covered or enclosed when transporting bagged silica to prevent rain exposure and material loss.
• Vehicle and Handling Equipment: When transporting large quantities, use dedicated clean trucks or containers. Chemwin guidelines suggest using vehicles with good sealing to prevent leakage of fine powder, and to avoid excessive vibration or impact during transit​. Some best practices:
  • Flatbed trucks carrying palletized bags should have side curtains or tarps.
  • Bulk pneumatic tankers must be dry and clean (moisture in a tanker can ruin a load of fumed silica by causing clumping).
  • Anti-static measures: For pneumatic conveying during unloading, trucks often have grounding cables to dissipate static. Also, the truck or container should be kept away from open flames and heat sources during transit​– not because silica will ignite (it won’t), but the packaging could, and it’s standard safety to keep chemicals away from heat.
• Labeling and Documentation: Clearly label all containers with product name and net weight, and mark if it’s silica (so handlers know what it is). Include handling instructions if needed (e.g. “Keep Dry”, “Do Not Freeze” on colloidal silica totes). While DOT labels aren’t required, workplace labels and/or GHS labels are wise. Accompany the shipment with the bill of lading and SDS. If shipping internationally, comply with IMDG (marine) or IATA (air) requirements – normally silica will be “Not regulated” but still list it on the declaration with its proper shipping name (e.g. “Amorphous silica, non-hazardous”).
• Training: Ensure that drivers and warehouse staff understand the nature of the silica product. Even if non-hazardous, they should know that spilled fine silica is slippery and airborne dust is an inhalation hazard. Chemwin recommends transport personnel be professionally trained about silica’s properties and safe procedures​. This includes knowing to avoid actions that create dust (like throwing bags) and how to respond if a container is damaged.

In summary, most silica shipments are non-regulated, but you must still adhere to OSHA/workplace hazard communication, prevent environmental release, and follow general good practice. Keep silica shipments dry, well-contained, and properly labeled. Check specific regulations (OSHA, REACH, DOT, IATA) to ensure compliance, especially if dealing with special cases (e.g., extremely fine nano-silica might be subject to new nano-material reporting in some regions, or if silica is part of a mixture that is hazardous). By treating silica with the respect a fine powder deserves, you’ll have safe and smooth transportation without regulatory issues.

5. Bulk Storage Systems for Manufacturing Facilities

Large-scale users of silica often install bulk storage systems to handle high volumes efficiently. Instead of dealing with hundreds of bags, a facility might receive silica in bulk (e.g. via tanker truck or big bags) and store it in a silo or large hopper. Designing these bulk systems requires accommodating silica’s flow properties and safeguarding quality.

Silo Storage:

For amorphous silica powders like fumed or precipitated silica, silo bins (often stainless steel or aluminum) are used. Silos range from a few cubic meters to dozens, depending on usage. Because fumed silica is extremely low-density, a very large silo may be needed to hold, say, 1 tonne of material (it can fill a silo you’d normally use for 20+ tonnes of a heavier powder!). One option is to use densified silica (pelletized form) if available, which packs more product into the same volume​. Silos must be weather-proof, dry, and vented. They should be indoors or at least sealed to avoid moisture ingress. Fumed silica is usually delivered by pneumatic tanker; in Europe and Japan it’s common to get silo truck deliveries​. The silo will have a filtration vent at the top to catch any silica dust displaced during pneumatic filling, preventing it from escaping to the atmosphere.

A challenge with bulk silica is flow: fine powders can be cohesive and prone to arching or ratholing in silos. To address this, silos may be equipped with flow aids: vibration pads, air fluidizers (which inject pulses of air to agitate the powder), or internal hopper designs that promote mass flow. Fumed silica, being fluffy, can actually fluidize easily, but it might also electrostatically cling to walls. Some plants install internal coatings or use grounded metallic silos to reduce static cling.

Big Bag (FIBC) Handling:

Some facilities prefer to receive silica in bulk bags and use a bulk bag unloading station rather than a fixed silo. An FIBC discharger frame can support the big bag above a feed hopper. Features like bag massage paddles or stretching devices help get the silica out (fumed silica can stick in bag corners)​. A dust-tight interface and a ventilation/filtration system on the hopper are important to contain any dust when opening the bag spout​. Modern discharging stations often include a dust collection unit that sucks any displaced air and filters out silica dust, returning it to the hopper​. This keeps the working area clean.

Conveying Systems:

Once stored, silica is usually moved via pneumatic conveyors or screw feeders to the point of use. Pneumatic transfer (using air to blow the powder through pipes) must be designed at modest velocities to avoid friction and static build-up. Air-assisted conveying works well for these light powders, but filters are needed at receiving bins. Some systems use an enclosed screw auger or belt conveyor for heavier grades like silica sand.

Inventory Management:

Bulk storage units should have level sensors or load cells to monitor inventory. However, with fumed silica, standard level sensors can be unreliable – the material is so light that it may not register on some devices. Capacitive sensors that detect material presence might get coated. Plants often opt for vibrating fork probes or paddle sensors for level detection in silica silos​. Alternatively, weighing the silo (load cell on legs or platform) gives an accurate measure of contents. Real-time inventory data helps scheduling refills and prevents running empty.

Silo Design Considerations:

• Keep silos dry: include desiccant breathers or dry air purge for makeup air, especially in humid climates, so moisture-laden air isn’t drawn in when silo pressure changes.
• Ventilation and explosion protection: While silica dust isn’t combustible, any fine dust cloud can reduce visibility or cause nuisance issues. Silo vents with filters are a must to capture dust. Some jurisdictions still require explosion vent panels on large powder silos as a precaution (even inert dust can sometimes cause a pressure event if mixed with enough flammable impurities). Generally, the risk is low for pure silica, but consult safety standards.
• Material of construction: Stainless steel or carbon steel silos are common. If storing hydrophilic silica, ensure no internal rust or contamination can occur (dry silica is slightly abrasive but not corrosive). Smooth interiors help flow.
• Pneumatic filling line: Design fill lines with minimal low spots where material can settle. Ensure the tanker driver knows the maximum pressure to use to avoid over-pressurizing the silo.

For colloidal silica bulk storage, large holding tanks (plastic or fiberglass-lined) can be used. These should be sealed and possibly insulated. As noted by Nouryon, recirculation pumps can be installed to periodically stir the colloid and prevent settlement, though continuous stirring isn’t required​. Tanks need venting for filling and perhaps nitrogen padding to prevent CO₂ from altering the silica’s pH over time.

In manufacturing, bulk storage and handling systems significantly improve efficiency – reducing manual handling of bags and ensuring a continuous supply. The trade-off is the capital cost and the engineering needed to handle silica’s unique properties. With a well-designed silo or bulk bag system, companies can safely store large volumes and feed their process on demand, all while minimizing dust exposure to workers and keeping the silica in optimal condition.

6. Special Requirements for Nano-Silica and Ultra-Fine Particles

Nanoparticulate silica (such as fumed silica with particle sizes in the tens of nanometers or silica used in high-tech applications like CMP slurries or aerogel production) requires special care beyond typical silica handling:

• Containment and Ventilation: Nano-silica is easily airborne due to its tiny particle size and low mass. Even more than regular silica, enclosed handling is recommended. Facilities may use glove boxes or sealed transfer systems when dispensing nano-silica powders for research. In industrial settings, localized exhaust ventilation with HEPA filtration is essential at points where nano-silica is added or dispensed. This prevents the release of ultrafine particles into the workplace air.
• Personal Protective Equipment (PPE): While all silica dust warrants respiratory protection, nano-silica, being so small, can penetrate deeper into the lungs. Workers should wear at least an N95 or P100 respirator when handling dry nano silica outside of containment. Goggles (or full-face respirators) protect the eyes from the fine dust. Disposable coveralls or suits can prevent the powder from settling on clothing and later becoming airborne again. Essentially, treat nano-silica with similar precautions as one would handle engineered nanoparticles in a lab.
• Avoiding Aggregation: Nano-silica often comes either as a powder or a dispersion. Fumed silica powder is already an aggregate of nano-sized primary particles, but users may want to keep those aggregates from fusing or growing. This means storing in cool, dry conditions to avoid any thermal or humidity-driven sintering. For aerogel precursors (which might be a silica sol or gel), avoid jostling and extreme temperatures that could initiate premature gelation. Some nano-silica sols are peptized with ammonia or other stabilizers; if they concentrate (water evaporation) or get contaminated, they might gel. So, maintain tight control of lids and consider inert gas blanket for long-term storage of reactive nano-silica precursors.
• Static and Dust Explosion Considerations: Nanopowders can carry static charge and in some cases, if the material was combustible, pose dust explosion risk. Pure silica is not combustible, but fine powders can still create a nuisance dust cloud. Ensure all equipment is grounded. Because nano-silica is often used in small quantities (per batch) in specialized processes, it’s sometimes handled in labs – those labs might use conductive mats and grounded tools to dissipate static.
• Regulatory Note on Nanomaterials: Some jurisdictions require that the presence of nanoparticles is noted in documentation. For example, the EU asks that SDS indicate if a substance is in nanoform. Ensure compliance with any nano-specific reporting. Despite not being “hazardous” by chemical nature, nano-silica might be subject to ongoing research regarding health effects, so it’s prudent to handle it with an extra margin of safety.
• Packaging for Nano-silica: If shipping nano-silica powders, double containment is wise. Small jars or bottles should be sealed in secondary containers (like sealed plastic bags or pouches) to contain any accidental leakage. Clearly label them as ultrafine powders. For bulk nano-silica (like fumed silica is technically a bulk nanoform), the usual packaging (multi-layer bags) suffices, but make sure no punctures or tears, given how easily the fine particles can escape.
• Exposure Monitoring: In facilities that heavily use nano-silica, it may be advisable to do air monitoring for ultrafine particles. OSHA has no separate nano-silica PEL, but keeping well below the total dust PEL is a good practice. HEPA-filtered vacuums should be used for any cleanup (never broom-sweep nano-powders).

In short, treat nano-scale silica with a high level of containment and protection. By preventing dispersion into air and avoiding process conditions that cause nanoparticles to clump or react, you ensure both safety and that the material’s nano-characteristics (like high surface area) remain as intended for your application.

7. Temperature Control in Storage and Transit

Temperature can affect silica materials in subtler ways than moisture. While silicon dioxide itself has a very high thermal stability (it won’t melt until ~1700°C and doesn’t degrade at normal temperatures), the form and medium of a silica product determine its temperature sensitivities:

• Colloidal Silica and Liquid Suspensions: These are the most temperature-sensitive silica products. Freezing is a big no-no: when colloidal silica freezes, the water forms ice crystals that push silica particles together, causing irreversible agglomeration (the colloid “gels” or settles out). As one manufacturer warns, if a colloidal silica product freezes, it will “most likely be rendered useless”​. Therefore, storage and transit must keep the temperature above 0°C (32°F) at all times. Many product datasheets specify a minimum storage temperature (often around 5°C). In cold climates, shipments of liquid silica may require heated warehouses or transport in heated trucks/containers. Similarly, extremely high heat is undesirable: prolonged storage at elevated temperatures (e.g. >40–50°C) can destabilize colloidal silica, possibly by increasing silica dissolution or promoting microbial growth​. A recommended storage range for colloidal silica is room temperature (~20°C)​, with an acceptable range of about 5–35°C. During transit, insulating packaging (thermal blankets for drums or IBCs) can buffer against outside temperatures. If a drum of colloidal silica arrives with signs of freezing (e.g., bulging drum or solid gel inside), it should be rejected or not used, as its performance will be compromised.
• Fumed/Precipitated Silica Powders: Dry silica powders are far less sensitive to temperature swings in terms of chemistry; however, temperature changes can cause condensation. For example, moving a cold drum of silica into a warm, humid room can lead to water condensing on the silica or inner walls, introducing moisture. Thus, it’s best to avoid extreme temperature cycling. In terms of upper temperature, if silica is stored in a hot warehouse (say 50°C on a summer afternoon), the main risk is to the packaging. Paper bags might weaken, and if there’s any polymer coating or liner, very high heat could degrade it. Also, any hydrophobic-treated silica could gradually lose its treatment at high heat (the organic treatment might volatilize or oxidize if above ~100°C for long periods). Practically, keeping silica powders in a cool (15–30°C), dry place is ideal​.
• Silica-filled liquids (e.g., silicone dispersions, LSR): The question mentions silicone oil and liquid silicone rubber (LSR) – these are silicone polymers often containing silica fillers. For such products, temperature control is important to prevent the silicone base from curing or separating. LSR components, for instance, shouldn’t be stored near heat sources that could advance their cure chemistry. While not silica per se, if transporting these, follow the supplier’s temperature guidelines (often 5–30°C) to maintain shelf life.
• High-temperature environments: If silica (especially certain aerogel materials used for insulation) is intended for high-temp use, storage isn’t an issue, but if those materials get moisture-laden in storage, applying heat can cause that moisture to expand or cause spalling. So even for things like insulating silica boards, keeping them dry before use will ensure their high-temp performance isn’t affected by water content turning to steam.
• Monitoring: In warehouses, use thermometers or even remote sensors to track storage temperature. In transit, data loggers can be placed with shipments of sensitive silica (particularly colloidal silica) to record if any temperature excursions occur. If a product is very temperature-sensitive, consider using reefer (refrigerated/heated) trucks set to the safe range.
• Thermal expansion: Generally not an issue for silica solids (they won’t expand much at these temperatures), but if you have silica in sealed containers (like an IBC filled to the brim with colloidal silica), heating will cause the liquid to expand slightly and build pressure. So do not overfill liquid containers and allow some headspace for expansion, especially if there’s a chance it will warm up in transit.

In essence, silica products should be kept within their comfort zone temperature-wise. For most, that’s roughly 5°C to 30°C, avoiding any freezing. Fumed and precipitated silica powders are robust to heat, but their packaging and moisture exposure are the concerns with temperature swings. Colloidal and liquid silicas demand the strictest temperature control. By paying attention to thermal conditions in storage and logistics (using insulation, climate control, and monitoring), you prevent damage that could be caused by something as simple as an unexpected cold snap or heat wave.

8. Safety Protocols for Handling Different Silica Forms

Working safely with silica requires a combination of engineering controls, protective equipment, and safe work practices. The level of precautions needed depends on the form of silica (dusty powder vs. liquid) and its hazard (crystalline vs. amorphous). Below are guidelines to ensure worker safety and regulatory compliance (with emphasis on OSHA standards):

• Dust Control Measures: Silica dust (especially respirable crystalline silica) is hazardous when inhaled. OSHA regulations mandate keeping exposures below 50 µg/m³ for crystalline silica​. To achieve this, use engineering controls:
  • Local Exhaust Ventilation (LEV): Equip transfer points, bag dumping stations, and mixing areas with LEV hoods that capture dust at the source. Use HEPA filtration on the exhaust air if recirculating indoors.
  • Enclosed Handling: Whenever possible, handle silica in closed systems (e.g., conveying in sealed piping, using enclosed bag discharge stations). Automated dispensing can reduce manual scooping that creates dust.
  • Wet Methods: If appropriate, use wetting to suppress dust. For example, when cleaning up spilled dry silica, do not dry sweep – this throws dust in the air. Instead, moisten the spilled material or use a HEPA vacuum​. The NJ hazard fact sheet for silica explicitly says to wet down spills or use HEPA vacuum and then put waste in sealed containers​. Similarly, don’t use compressed air to blow silica dust off surfaces or clothing.
  • Housekeeping: Any settled dust should be regularly cleaned with safe methods (vacuum or wet wipe). Even amorphous silica can cause slippery floors or respiratory irritation if allowed to accumulate.
• Personal Protective Equipment (PPE): Provide workers with adequate PPE:
  • Respiratory Protection: For any handling of dry silica that can become airborne (bag dumping, mixing, sweeping out a silo), at least an N95 dust mask is recommended. If exposures might exceed limits or if it’s crystalline silica, use higher protection like P100 filters or powered air-purifying respirators. According to one SDS, respiratory protection is not needed under normal conditions of use, but for spills or high concentrations, use a respirator​.
  • Eye Protection: Wear safety glasses or goggles when handling silica powder​. Fine particles can cause eye irritation. For liquids like colloidal silica, safety glasses protect against splashes.
  • Gloves and Clothing: Silica isn’t absorbed through the skin, but it can be drying and irritating, especially colloidal silica liquid (which has an alkaline pH). Use rubber gloves when handling wet silica or prolonged contact with dry powder (to avoid drying out skin)​. If working with large quantities of powder, a disposable coverall prevents dust from getting on personal clothes (which could later be shaken out and inhaled).
  • Respiratory Medical Surveillance: In workplaces with significant crystalline silica exposure, OSHA requires periodic medical exams (per the silica standard) to monitor lung health. This is beyond basic PPE but part of a safety program.
• Work Practice Controls: Train operators in safe techniques:
  • Pour or scoop silica gently to minimize dust clouds. For example, empty bags slowly and close to the receiving vessel.
  • Keep containers closed when not in use​– don’t leave a drum of silica open to ambient air.
  • Post warning signs in areas with silica dust hazards (OSHA requires signage like “Danger: Silica Dust Hazard” in regulated areas).
  • No eating, drinking, or smoking in silica-handling areas (to avoid ingesting particles or hand-to-mouth transfer). Wash hands before meals and after work.
• OSHA Compliance: Ensure your operations meet the OSHA Respirable Crystalline Silica Standard (29 CFR 1910.1053 for general industry). Key requirements include: a written exposure control plan, providing respirators if needed, housekeeping with no dry sweeping, medical surveillance for exposed workers, and training on silica hazards. Even if you’re handling amorphous silica, treat heavy dust as a “nuisance dust,” which has its own exposure limits (for example, OSHA PEL for amorphous silica is around 6 mg/m³). An SDS for fumed silica notes it as a “nuisance particulate” with OSHA TWA limits​, meaning you shouldn’t allow excessive dust even if it’s amorphous.
• Spill and Accident Preparedness: For a powder spill, evacuate the area as needed to avoid unnecessary dust exposure, then equip the cleanup crew with respirators and gloves. Wet or vacuum the spill, as mentioned. For a colloidal silica spill, though not toxic, it’s very slippery – cordon off the area to prevent falls. Use an absorbent (sand, sawdust) to soak up the liquid​, then shovel it into containers. Colloidal silica is alkaline, so avoid skin contact during cleanup (wear gloves and eye protection).
• First Aid: Silica contact typically causes irritation. If dust gets in the eyes, rinse gently with water. If a person inhales a large amount of dust and has trouble breathing, move them to fresh air (and seek medical help if coughing or other symptoms persist)​. For skin contact with colloidal silica, wash with soap and water (it can cause dryness or mild irritation)​.
• Fire Safety: Silica itself is not flammable and doesn’t burn​. However, in a fire situation, silica containers (bags, plastic drums) could burn from other fuel. Firefighters can use any extinguishing media; there are no special firefighting measures needed for the silica substance​. The main concern is the smoke from packaging and avoiding breathing any residual silica dust in the aftermath.

By following these safety protocols—controlling dust at the source, wearing proper PPE, and adhering to OSHA limits—workers can handle all forms of silica (from bulk sand to nanoscale powder) with minimal health risk. Regular training and reinforcement of these practices will maintain a safe work environment when dealing with silica.

9. Quality Preservation During Long-Term Storage

Silica products often have a long shelf life, but their quality can gradually degrade if storage conditions are not ideal. “Long-term” storage could mean months to years. To ensure that silica remains as effective as on day one, consider these strategies:

• Follow Manufacturer Shelf-Life Guidelines: Many suppliers provide a recommended shelf life. For example, fumed silica producers suggest using the product within 1–2 years of manufacture for best performance​. Colloidal silica dispersions might have a shelf life of 6–24 months, depending on the formulation​. These time frames assume proper storage, so mark the receipt date and try to use older inventory first (FIFO: first in, first out rotation).
• Periodic Testing: If silica has been stored for a long time, test critical parameters before use. For fumed or precipitated silica, check for moisture content, loss on drying, or pH (some silicas have a spec for pH of slurry). Caking or lumps can be an indicator of moisture uptake – a quick sieve test can show if lumps are present. For colloidal silica, check particle size (to see if growth/aggregation occurred) and pH/viscosity to ensure the dispersion is still stable. If the silica is used for a performance aspect (like reinforcement or thickening), a lab performance test (e.g., viscosity test in a standard resin for fumed silica) can reveal if it’s still giving the expected effect.
• Preventative Storage Conditions: As discussed in earlier sections, dry and cool are key. Over the years, even slight moisture ingress can accumulate. Using a double container approach can help, e.g., keeping the original silica bag inside a second sealed drum if you need to store it for an extended period. For liquids, make sure the container is full as much as possible (less air = less carbonation or evaporation). Avoid UV exposure for any silica in translucent packaging – UV won’t damage silica itself but can degrade plastic packaging or any additives present.
• Reconditioning if Possible: Some silica products can be reconditioned if issues arise. If a powder has absorbed moisture and clumped, gentle drying in an oven (at moderate temperature) and milling/sieving might recover it. This is generally not done unless the material is of very high value because it’s labor-intensive. Colloidal silica that has partially gelled cannot be fixed by simple means. However, if just slight settling occurred, sometimes mixing or recirculating the container can restore uniformity (assuming no hard cake at the bottom). Always consult the technical data sheet – it may say “do not freeze – irreversible” or such, which means no restoration is possible after that kind of event.
• Signs of Degradation: Know what to look for:
  • Fumed/precipitated silica: Excessive lumping, visible discoloration (should be white; brown or gray could indicate contamination), or a musty odor (could indicate packaging or environmental contamination). Any foreign particles or debris in the powder are a red flag. Also, check if the silica disperses properly in application; old hydrophilic silica that got humid might not disperse smoothly (you could feel “grit” due to aggregated particles).
  • Colloidal silica: Check for settlement or layer separation. A gelled layer or sediment at the bottom of the drum suggests that the stability was compromised. Also, sniff for off-odors – a bacterial contamination might produce smells. If the liquid turned hazy (when it used to be clear) or the pH drifted far from spec, these could be signs of degradation.
• Maintain Inventory Management: In a large storage facility, it’s easy to shove a pallet of silica into a corner and forget it. Implement inventory tracking that flags older batches. Conduct periodic stock inspections – e.g., every 6 months, have quality personnel inspect all silica stock condition. Warehouses should also be inspected for any roof leaks or pest issues that could affect stored materials. Silica itself doesn’t rot, but if packaging is breached, pests might get into the paper or other components.
• Climate Control for Long Term: If you know silica will be stored for years, a climate-controlled warehouse (temperature and humidity) is worth it, especially for high-value silica. This avoids the cyclic humidity and temperature swings through seasons that can slowly permeate packaging.

Manufacturers often note that when stored correctly, silica products are “stable indefinitely” (for instance, one Sigma-Aldrich spec said fumed silica is stable if kept dry​). The key caveat is “if kept dry.” So the recipe for long-term preservation is no mystery: keep it dry, and it will keep. By following these practices – FIFO rotation, periodic checks, and maintaining good storage conditions – you can confidently use silica that has been in storage for a prolonged period with minimal risk of performance loss.

10. Specialized Transportation for Colloidal and Liquid Silica Products

Transporting liquid forms of silica, such as colloidal silica dispersions, silanes or silicone-based liquids containing silica, or even silicone slurries, introduces different challenges compared to powders. Here’s how to handle liquid silica products during transit:

• Container Selection: Liquids require sealed, sturdy containers that won’t leak. Common containers for colloidal silica:
  • Plastic Drums (polyethylene) – 55-gallon drums are typical, with tightly securing bung caps. Plastic resists the high pH of many colloidal silicas (pH ~9–10). Steel drums with liners can also be used.
  • Intermediate Bulk Containers (IBCs) – These 1000 L tote tanks have an advantage for bulk transport (easy forklift handling, stackable). Ensure the valve is secure and cap tight. Often IBCs will have tamper-evident seals on outlets.
  • Isotanks or tank trucks – For very large deliveries, specialized tanker trucks can carry tens of thousands of liters of colloidal silica. These need to be dedicated or thoroughly cleaned to avoid contamination between products.
• Prevent Freezing and Overheating: As covered in the temperature section, maintaining temperature is crucial. For transit:
  • In winter, use heated trucks or box trucks that can keep the interior above freezing. If that’s not available, smaller shipments can be sent with passive insulation (thermal blankets around drums, or shipping in a heated LTL service).
  • For overseas or long-distance, if freezing is a risk, consider specifying “Protect From Freezing” on the shipment and using temperature loggers.
  • In hot climates, avoid leaving IBCs of colloidal silica in direct sun or extreme heat for long, to prevent evaporation or pressure build-up.
• Agitation and Settling: Most colloidal silicas are formulated to be stable for months, but some settling can occur if left static for a long time (especially in transit vibrations might actually help keep it mixed). Generally, no special agitation is required during normal transit – in fact, you can’t really stir an IBC in a truck. However, if a product is known to settle, shippers might “roll” or tilt drum containers before use to remix. For bulk isotanks, the destination can recirculate the tank’s contents with a pump after delivery if needed. Some shipping companies have the capability to recirculate liquid in the tank periodically (by pumping from bottom outlet back to top) if transit is very long or storage in the tank is extended.
• Pressure Management: Liquid silica products aren’t usually pressurized, but temperature changes can cause expansion. Make sure drums/IBCs are not overfilled (leave some headspace). IBCs have vents – check that vent caps are functioning (some are one-way vents allowing air in but not letting vapor out until pressure threshold).
• Labeling and Documentation: Even though colloidal silica is non-hazardous, label the containers clearly: e.g. “Colloidal Silica 40%” and include any hazard indication like “irritant” if pH is high. DOT markings will usually just be “Non-regulated material”. Still, provide an SDS to the carrier. Also mark handling instructions: “Keep from freezing” on the drum or tote is vital. If the silica is food-grade (some colloidal silicas are used in food processes or pharma), ensure the truck/container is dedicated to food-grade materials or properly sanitized.
• Securing the Load: Liquids are heavy; drums and IBCs must be properly strapped or braced in the truck to prevent shifting or falling. A leaked drum of colloidal silica can be messy (though not toxic, the slick solution can create a huge slip hazard and cleaning challenge). So, use appropriate dunnage and load distribution.
• Multi-modal Transit: If shipping by air, colloidal silica is usually fine to send (not flammable, etc.), but quantity per package might be limited by weight. By sea, consider temperature control in the container if crossing cold regions. Some companies use refrigerated (heated) ISO containers for long sea voyages to ensure it doesn’t freeze in transit.
• Silicone oils and LSR: These are related but slightly different – often they are not dispersions of silica but polymers with silica filler. For completeness: silicone oil (polydimethylsiloxane) with fumed silica thickener (like a paste) should be shipped in well-sealed pails or drums, no special hazard except maybe treat as “environmentally non-hazardous oil”. Liquid Silicone Rubber (LSR) components with silica filler typically come in pails or drums; they shouldn’t freeze (could cause phase separation). The key is to keep them sealed (to avoid curing via ambient moisture for certain types) and within temperature range.

In all cases, communication with the carrier is important: let them know the material’s needs. Many freight agreements allow you to note “temperature-controlled service required”. Use trackers to monitor shipment conditions if it’s a critical product.

By taking these precautions, liquid silica products can be transported without incident, arriving at the customer in the same stable state they left the factory. The main focus is avoiding extreme temperatures, keeping containers intact and sealed, and preventing any major jolts or leaks. When done right, shipping a tote of colloidal silica is as uneventful as shipping a tote of water—except you must never let that water turn to ice!

11. Sustainable Practices in Silica Storage and Transportation

Sustainability is an increasing priority in chemical logistics. For silica storage and transport, several eco-friendly practices can be adopted:

• Reusable and Bulk Packaging: One of the simplest ways to reduce waste is using bulk containers and reusing them. Instead of 200 small bags (and all the paper/plastic waste they generate), a customer can receive silica in a bulk bag or silo truck. Bulk deliveries eliminate bag waste and often pallets too. If bulk isn’t possible, consider returnable packaging programs. For instance, some suppliers use stainless steel totes or drums that, once emptied, are sent back, reconditioned, and reused. Even FIBC bulk bags can sometimes be cleaned and reused for the same product (taking care to ensure no cross-contamination). These practices cut down on single-use packaging disposal.
• Material Recycling: If silica is spilled or a batch goes bad (non-contaminated), it may be possible to recycle or repurpose it. For example, slightly off-spec precipitated silica might be usable in a less demanding application instead of being landfilled. Also, the big wooden pallets and cardboard used in shipments should be recycled or reused.
• Energy-Efficient Storage: Warehouses can minimize energy by using insulation and passive climate control. Since silica needs dry storage, consider using desiccant dehumidifiers which can be more energy-efficient than air conditioning in some climates. If heating is needed (to keep colloidal silica from freezing), localized heating (heating only the area around the totes) is more efficient than heating a whole large warehouse. Using smart sensors to control climate (only dehumidify or heat when outside conditions warrant) saves energy.
• Optimized Transportation: From a logistics standpoint, shipping silica in larger lots or via optimized routes lowers the carbon footprint per unit. If you can ship full truckloads (FTL) instead of many LTL shipments, that reduces fuel usage overall. Also, working with carriers that have sustainability programs (fuel-efficient fleets, intermodal transport usage) can contribute. Some companies coordinate with nearby facilities to share bulk shipments – e.g. a tanker delivers to multiple silos in one trip instead of separate trips.
• Lifecycle of Packaging: Many silica producers have moved to packaging that is easier to recycle. For example, using unbleached paper bags (no plastic layer) when possible so the bags can be recycled or even composted. When plastic liners are necessary, using recyclable plastics and labeling them helps the end-user recycle appropriately. Some innovative ideas include offering a rebate or return system for used packaging.
• Environmental Management Systems: Major manufacturers often have ISO 14001 or Responsible Care certifications, indicating their commitment to environmental performance. For instance, Cabot Corporation, a fumed silica maker, highlights that their operations are certified to ISO 14001 and they strive for sustainable practices​. This can trickle down to storage/transport by ensuring all processes are reviewed for environmental impact. Maybe the facility installs solar panels to power the warehouse storing silica, or uses electric forklifts instead of diesel – all contributing to greener operations.
• Desiccant Regeneration: A small point, but if you use silica gel desiccants to keep storage dry, those gels can be regenerated and reused by heating to drive off moisture, rather than thrown away each time. This is both cost-saving and reduces waste.
• Digitalization (to avoid waste): Tying into the next section, using digital inventory management can prevent overstocking and product expiration, which in turn avoids the waste of discarding old material. A smart supply chain that ensures “make only what’s needed and ship in optimal batches” reduces surplus that might spoil.

Sustainable practices often have the co-benefit of improving efficiency. Bulk handling, for instance, not only cuts packaging waste but also labor costs. It’s a win-win. Companies are also increasingly transparent about these efforts, which can satisfy customer demands for greener supply chains. By integrating these sustainable approaches into silica storage and transport, we reduce the environmental footprint of what is otherwise an inert, ubiquitous material.

12. Digital Tracking and Inventory Management Systems

In the era of Industry 4.0, digital tools are transforming how materials like silica are tracked and managed through the supply chain. Implementing these technologies can greatly enhance transparency, efficiency, and compliance:

• RFID Tagging: Radio Frequency Identification (RFID) tags can be attached to silica containers (bags, FIBCs, drums) to enable automated tracking. Unlike barcodes, RFID doesn’t require line-of-sight; pallets moving through a gate can be instantly logged. For example, AGC Chemicals developed a “Smart Inventory System” where RFID tags on raw material containers and sensors at warehouse entrances allow real-time monitoring of inventory movements​. In practice, an RFID-tagged tote of colloidal silica can be scanned as it leaves the factory, arrives at the customer, and even when loaded into the usage system, providing end-to-end traceability. This reduces manual counting and errors.
• Blockchain for Supply Chain: Blockchain technology can be used to create an immutable ledger of silica shipments. This might be more relevant for high-value or regulated supply chains (for instance, guaranteeing the provenance of pharmaceutical-grade silica). Each handoff (producer -> transporter -> customer) can be a block in the chain with timestamps and conditions (like temperature data). The benefit is transparency and trust – anyone in permissioned network can verify that the silica hasn’t been tampered with and see its journey. While not mainstream for common silica yet, such systems are being piloted in chemicals.
• Environmental Monitoring Sensors: IoT sensors can travel with the silica or be installed in storage areas:
  • Temperature and Humidity Loggers: Small data loggers can be put inside a pallet or attached to a drum to record if temperature/humidity thresholds are exceeded. For sensitive shipments, the receiver can download this data to see if, say, at any point humidity went above 60% (which might indicate a risk of caking). There are also real-time versions that can transmit data en route.
  • Level Sensors for Inventory: As mentioned in bulk storage, modern level sensors can be tied into an Internet-enabled system to report silo levels continuously. A plant manager can check silo levels on a dashboard and even set alerts when it’s time to reorder. AGC’s system even automates reordering when tank levels hit a trigger​.
  • Security Sensors: Smart locks or GPS trackers on shipping containers carrying valuable silica could alert if there’s unauthorized opening or route deviation, adding security to the supply chain.
• Inventory Management Software Integration: All this data feeds into software (ERP systems or specialized inventory management tools). Each silica batch can be tracked by lot number from production to warehouse to customer. Using scanners or mobile devices, warehouse staff can update stock movements instantly. This reduces mistakes (like using the wrong grade of silica in production due to a mix-up) and ensures FIFO rotation because the system can prompt workers to pick the oldest lot.
• Compliance and Reporting: Digital systems also simplify compliance. OSHA’s hazard communication can be partly handled by ensuring SDS links are attached to digital records for each material. When shipping, the system can automatically print the required labels and paperwork with the correct hazard information for silica, reducing human error. For international shipping, integration can ensure all documentation (like REACH compliance statements) travel with the digital record of the shipment.
• Efficiency Gains: By knowing exactly what is where, companies avoid overstocking or stockouts. They can optimize inventory levels, which is both cost-effective and ensures materials don’t expire unused. In the long run, this also supports sustainability (less waste from expired product).

For example, imagine a network of silos at a customer site linked to the supplier: the silos report levels daily via cloud. The supplier can plan a bulk tanker delivery just-in-time, avoiding emergency shipments or the silo running dry. All the while, both parties can see the status on a dashboard.

Implementation considerations: When tagging or sensorizing, silica’s form matters. RFID tags on paper bags need to be robust enough not to be torn or obscured by the product. For metal drums, certain RFID frequencies might be impacted by the metal, so placement of tags is considered. Battery life on wireless sensors must be sufficient for long transit times.

Overall, digital tracking is like giving “eyes” to your storage and transport process. It increases confidence that the silica you have is exactly what you think it is, in the condition you expect, and that you can locate and deploy it when needed. It reduces manual logs and guesswork. As industry moves toward more automation and data-driven decision making, these systems for inventory and environmental monitoring will become standard for managing materials like silica.

13. Adapting Storage Methods for Different Applications

The end-use of a silica product can influence how we store and handle it, to preserve the properties most important for that application. Let’s look at a few scenarios and specific considerations for each:

• Thermal Insulation Materials (e.g. Silica Aerogels, Microporous Insulation): These materials often rely on silica’s porosity and low thermal conductivity. They are sometimes supplied as powders, blankets, or boards. Storage: Keep them very dry. If an aerogel blanket absorbs moisture, its insulation performance drops until dried out. Store in sealed bags or containers. Temperature changes aren’t a big issue, but moisture is. Also, some insulation boards have organic binders – so store away from high heat that could degrade the binder. Handling: These can be dusty when cut, so similar PPE as for other silica dust (respirator) is needed despite the end use being different.
• Cosmetics and Food-Grade Silica: Silica is used in cosmetics (as a bulking agent, absorbent or to provide a silky feel) and in foods (as an anti-caking agent E551). Purity and contamination are critical here. For storage, that means a clean, pest-free, odor-free environment. Silica will adsorb odors – you don’t want your cosmetic-grade silica picking up a chemical smell in a warehouse. Use food-grade packaging (FDA-compliant bags or liners) and keep it segregated from industrial chemicals. Also maintain traceability (lot tracking) in case of any quality issue, as required in food/cosmetic supply chains. Humidity: Even food-grade silica (which often is a precipitated form) should stay dry to keep its anti-caking ability optimal. No cross-contact: If the same facility stores industrial silica and food silica, strict segregation is needed to prevent any chance of mixing or contamination with something non-food-grade.
• Adhesives and Sealants (Silica as Thixotrope): Fumed silica is commonly stored at adhesive plants to be used as a thickening agent. Focus on moisture – if it clumps, it won’t disperse uniformly and may cause defects (like gels) in the adhesive. So, for these operations, using desiccant dryers on any air that contacts the silica (like during pneumatic conveying into mixers) is a good practice. Storage in a silo might be an option; if so, ensure that silo is dedicated and kept very dry. If the adhesive application needs the silica to be aerated (fluffy) for maximum effect, avoid any storage or handling that overly compacts it – for instance, don’t stack too many pallets on top of each other for long periods which might compress the bottom bags.
• Electronics (Semiconductor Filler, Optical Uses): High-purity silica (like for semiconductor encapsulants or as polish in semiconductor wafer fabs) demands extremely clean storage. Sometimes these are in cleanrooms or climate-controlled rooms. Avoid any airborne contamination – even dust from a regular concrete floor could be an issue if it got into a high-purity silica. So use sealed containers, possibly double-bagged, and open them only in clean environments. Also, ESD (electrostatic discharge) precautions might be taken if the silica is used in an ESD-sensitive area (though silica itself isn’t electronic, handling it in a cleanroom often overlaps with ESD control programs).
• Pharmaceutical and Dental (Silica as excipient or abrasive): Pharma-grade silica (like colloidal silica in drug formulations or silica in toothpaste) also needs GMP-like handling. This means controlled access storage, batch records, and often limited shelf life. For example, if a pharma silica has a 2-year retest date, you must track that and not use beyond without QC clearance. Keep the original Certificate of Analysis on file and store under the conditions specified on the label (often “store in a dry place at 15–30°C”).
• Paints and Coatings (Silica for matting or thickening): Here, a bit of moisture in silica can cause issues like gelling in the paint. For matting agents (which are often precipitated or gel silicas), they may come in bead form that is somewhat robust, but still, any clumping is bad. So for coatings, maintain dry storage and break any clumps before adding to batches (through sieving). Also, temperature: if silica is stored in a hot warehouse, then added to a solvent-based paint, the temperature can cause faster solvent evaporation or reaction. While not directly a silica issue, some coating facilities pre-condition powders to ambient conditions before use.

In all these cases, the core storage guidelines (dry, cool, sealed) apply, but the emphasis might shift: For food/cosmetics, contamination prevention is paramount; for industrial uses like adhesives, performance (keeping it fluffy and dry) is key; for insulation, moisture avoidance to preserve function.

Adjust your storage SOPs based on end-use requirements. If necessary, have separate storage areas for “high grade” versus “technical grade” silica, each with appropriate controls. By aligning storage conditions with the eventual application needs, you ensure the silica’s properties remain aligned with what the end product or process expects. This prevents surprises like an end-user complaining that a “normally free-flowing silica was clumpy and ruined my formulation” – which could often be traced back to suboptimal storage.

In summary, think about what property of the silica is most valued in its application (purity, particle size, flow, moisture content, etc.), and make that the priority to safeguard during storage and handling.

14. Emergency Response and Spill Management

Despite best efforts, accidents can happen – a forklift may puncture a tote, a silo might discharge inadvertently, or a drum might tip over. Having a clear emergency response plan for silica spills or incidents is important to minimize hazards and losses:

• Powder Silica Spill: If a bag or silo leaks a large amount of silica powder, the primary hazard is airborne dust and the resultant inhalation risk (particularly if it’s crystalline silica). The first step is to isolate the area – keep personnel not involved in cleanup away to avoid exposure. Alert the EHS team if available. Cleanup crew should wear dust masks or respirators (P100 recommended for large spills) and goggles. To suppress dust during cleanup, moisten the spilled silica lightly with water (if it’s a small spill, a water spray can be used carefully)​. Be cautious: too much water will form a slurry that is slippery; you want just enough to keep dust down. Alternatively, use a HEPA-filter vacuum designed for fine dust​. Shovel or vacuum the material into sealed containers or heavy-duty bags. Do not sweep with a dry broom or use compressed air​. Once bulk is removed, you can wipe the floor with a damp cloth or mop to get residual dust. Dispose of the collected material according to local regulations – silica itself isn’t hazardous waste, but you may need to dispose of it as solid waste. If the spill is in a public area or ventilation could carry dust beyond, you might need to notify authorities (though silica doesn’t have an immediate toxicity, large releases of dust could be reportable under air pollution rules).
• Colloidal Silica Spill: A liquid spill will spread, so contain it quickly with spill booms or absorbent material. Use sand, clay absorbents, or commercial spill pillows to encircle and soak up the liquid​. Colloidal silica is alkaline; if it’s a huge spill into a waterway (unlikely in a plant setting), you’d want to notify environmental authorities as it could raise pH and cause a fish kill or sediment. On a factory floor, the biggest concern is slip hazard – post signs or barricade until it’s cleaned. After absorbing, scrape up the gelled/absorbed material and place in containers. The floor may remain slick, so wash with water and an appropriate cleaner to remove the silica residue (silica particles can be like ball bearings on a smooth floor). Do not flush large amounts of colloidal silica down drains, as it can settle in pipes and harden. Collect as much as possible for disposal.
• Release to Air (Dust Cloud): In a scenario like a silo filter failure or a bag break in a dusty area, you might have an airborne cloud. In such cases, evacuate or have workers put on respirators. Ventilation can be used to clear the area (ideally through filtered exhaust). Remember that although silica isn’t combustible, any dense dust cloud in a confined space is a visibility and respiratory hazard, and if there are other combustible dusts present, caution is needed. Let the dust settle if possible before re-entering without protection.
• Reporting: Silica is not on the list of EPA hazardous substances with reportable quantities, so an ordinary spill doesn’t require federal reporting like oil or toxic chemicals would. However, if significant quantities reach the environment (e.g. a truck accident dumps a load of silica near a stream), you might need to inform environmental agencies as a matter of liability and cleanup coordination. Company policy might also require internal incident reporting and investigation for any spill.
• First Aid in Spill Situations: If someone inhales a large amount of silica dust and feels unwell, move them to fresh air and monitor for respiratory distress​. If symptoms persist, seek medical attention. If silica got in eyes (like dust during spill cleanup), flush eyes at an eyewash station for several minutes. For skin contact with liquid silica, wash with water; it’s not severely harmful but prolonged contact with the alkaline solution can irritate or dry skin.
• Fire or Other Emergencies: Silica itself doesn’t burn, but if there’s a fire in the storage area (pallets of bagged silica), responders should be aware of potential dust when the bags burn or rupture. Firewater runoff with silica could create a slurry – prevent it from going to storm drains if possible by diking. If a drum of colloidal silica is in a fire, it might not fuel the fire (mostly water) but could burst when water inside boils. So firefighting should cool such containers.
• Training and Drills: Ensure workers know the procedures by conducting drills. A “spill drill” for a burst big bag can teach the team to don PPE quickly and coordinate containment. Keep spill kits accessible: a typical kit for silica could include particle masks, gloves, plastic bags, a wetting spray bottle, a scoop, and absorbents (for liquids).

Having a calm, methodical approach to silica spills prevents a messy situation from becoming a health hazard. In many ways, cleaning up silica is like cleaning up sand or dirt, just with extra care to not stir it up. After the incident, investigate why it happened (damaged packaging? Equipment failure? human error?) and take corrective action to prevent future occurrences. Each near-miss or spill is a learning opportunity to tighten the storage/handling process and reinforce the importance of the protocols discussed throughout this article.
