Ceramic Grade Silicon Nitride Powder
Ceramic Grade Silicon Nitride Powder

Ceramic Grade Silicon Nitride Powder

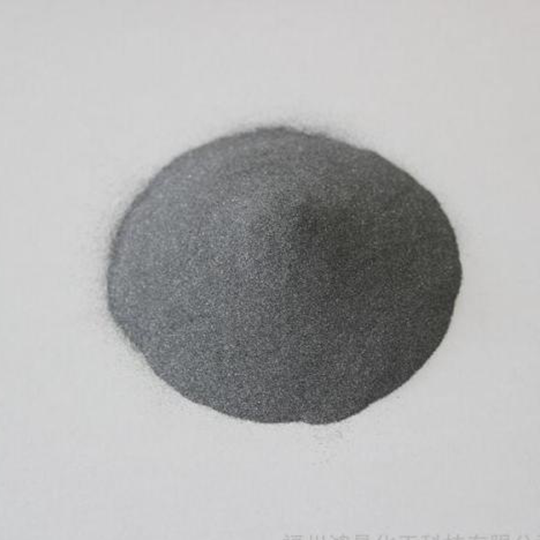

Our silicon nitride powder is produced with direct nitridation method by using high purity silicon powder. It features highαphase content, low impurity level, fine particle sizes (particle size can be customized) and well-controlled particle size distribution and powder morphology.
CHARACTERISTIC
TECHNICAL DATA
APPLICATIONS
PACKAGING

CHARACTERISTIC

Its high sintering activity and other attributes Highα/β phase content.
Low impurity level.
Fine particle sizes (particle size can be customized),well-controlled particle size distribution and powder morphology. /High sintering activity.
The silicon nitride powder is the first choice in the production of high-end silicon nitride ceramic products. The ceramics produced by it approached the level of the UBE E-10 grade.


TECHNICAL DATA

Grade D50
(μm)
α-phase(%) Impurity Elements (%)
N Fe Al Ca Fsi O
JP11A ≤1 ≥95 ≥38.5 ≤0.05 ≤0.01 ≤0.01 ≤0.1 ≤1.0
JP12A ≤3 ≥90 ≥38 ≤0.1 ≤0.01 ≤0.01 ≤0.3 ≤1.0
JP31A(Silicon Diimide)
≤0.6 ≥97 ≥38 ≤0.001 ≤0.0005 ≤0.0015 0 ≤1.0

Grade D50
(μm)
β-phase
(%)
Impurity Elements (%)
N Fe Al Ca Fsi O
JP21B ≤1 ≥93 ≥38.5 ≤0.05 ≤0.01 ≤0.01 ≤0.1 ≤1.0
JP22B ≤3 ≥90 ≥38 ≤0.1 ≤0.01 ≤0.01 ≤0.2 ≤1.0


APPLICATIONS

1.Reciprocating engine components.
2.Turbochargers.
3.Bearings.
4.Metal cutting.
5.Shaping tools.
6.Hot metal handling.


PACKAGING

Packing: plastic  drum with double-layer plastic bags inside 25kg/Drum( Can be packed according to customer’s requirement).

We recommend storing the product in closed containers under dry conditions and to protect the material from volatile substances. Also, please do not touch the package with sharp objects for fear of leakage.
