CHARACTERISTIC

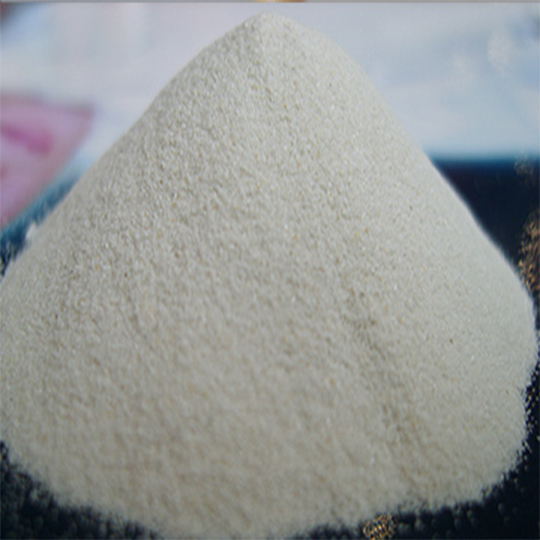

The HMEZIRCO^® fused yttria-stabilized zirconias are produced through special electrofusion processes, which based on high-purity zirconia raws, by adopting different yttria dosage (3mol, 5mol, 8mol, etc.)

TECHNICAL DATA

Code	Chemical composition（%）							Stabilization rate(%)	True density（g/m³）	Granularity
Code	ZrO2	Al2O3	SiO2	CaO	Y2O3	Fe2O3	TiO2	Stabilization rate(%)	True density（g/m³）	Granularity
HME-5Y-b	＞93	＜0.3	＜0.4	＜0.2	4.8-5.5	＜0.1	＜0.2	＞50	＞5.8	According to customer requirements
HME-7Y-a	≥90	≤0.1	≤0.2	≤0.2	7-8	≤0.1	≤0.1	75-85	＞6.1
HME-7Y-aQ	≥91	≤0.1	≤0.1	≤0.1	7-8	≤0.1	≤0.1	＞98	＞6.1
HME-7Y-b	≥90	≤0.3	≤0.4	≤0.2	7-8	≤0.1	≤0.2	75-85	＞6.0
HME-7Y-cQ	≥90	≤0.1	≤0.2	＜0.5	7-8	≤0.1	≤0.1	＞95	＞6.0
HEM-9Y-b	＞89	＜0.2	＜0.4	＜0.2	8.8-9.8	＜0.1	＜0.2	＞85	＞6.1
HEM-13Y-a	＞84	＜0.1	＜0.1	＜0.1	13-14	＜0.05	＜0.05	＞95	＞6.2
HEM-13Y-b	＞84	＜0.2	＜0.2	＜0.2	13-14	＜0.1	＜0.2	＞95	＞6.2

APPLICATIONS

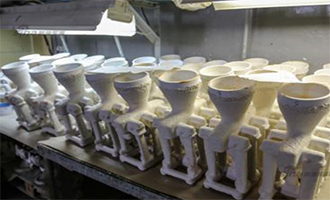

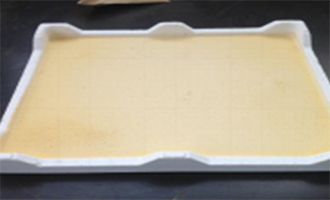

The HMEZIRCO^®fused yttria-stabilized zirconias are used for manufacturing zirconium refractory materials, and filling with insulation layer of induction furnace materials; manufacturing titanium alloy casting coating materials, zirconia products; surface coating of aluminum oxide plates, plasma spraying, oxygen-permeable membrane ceramic rings, etc.

PACKAGING

The materials would be packed in 25kg composite paper bag or tonnage woven bag, lined with polyethylene film. Or it would be packed according to the user's requirements.
