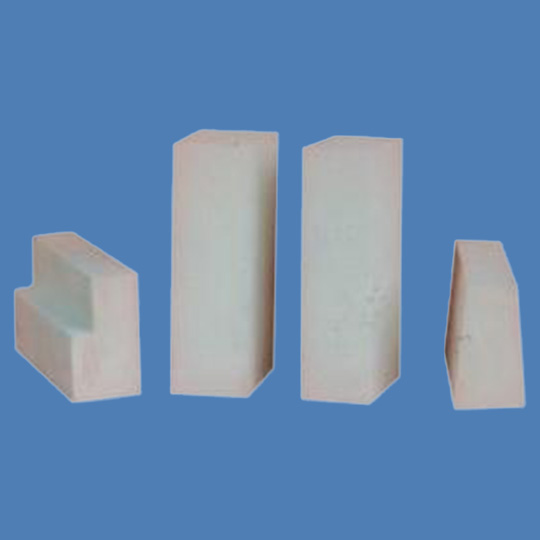

High-alumina insulating firebricks
High-alumina insulating firebricks
High-alumina insulating firebricks

High-alumina insulating firebricks

Chat Now
CHARACTERISTIC
TECHNICAL DATA
APPLICATIONS
PACKAGING

CHARACTERISTIC

Mainly consist of high-grade hollow ball and alumina and processed by high temperature sintering. High strength, low thermal conductivity, and applicable for furnace insulation and lining with temperature less than 1400°C.

TECHNICAL DATA

Model Specification   LG-1000 LG-900 LG-800 LG-700 LG-600 LG-500
AL₂O₃%≥ 4.8
Fe₂O₃%≤ 2
Density kg/m³ 1000 900 800 700 600 500
Compressive Strength  4 3.5 3 2.5 2 1.5
MPa≥
Reheating Linear Change Rate≤2%×2h testing temperature°C 1400 1400 1400 1350 1350 1250
Thermal Conductivity 0.5 0.35 0.35 0.3 0.25 0.2
（350±25°C）W/m·k≤
