Your Position: Home > Product > Thermal Insulation > High-strength clay bonded insulating firebricks

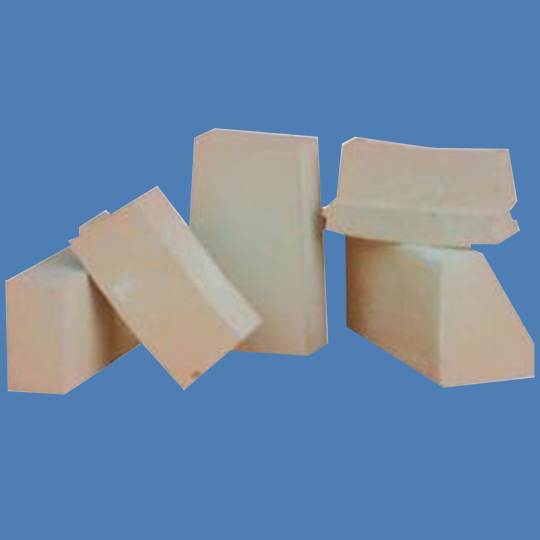

High-strength clay bonded insulating firebricks
High-strength clay bonded insulating firebricks
High-strength clay bonded insulating firebricks

High-strength clay bonded insulating firebricks

Chat Now
CHARACTERISTIC
TECHNICAL DATA
APPLICATIONS
PACKAGING

CHARACTERISTIC

High-strength clay bonded insulating firebricks

TECHNICAL DATA

Model  Specification       NG-1500 NG-1300 NG-1000 NG-900 NG-800 NG-700 NG-600 NG-500 NG-400
Density kg/m³ 1500 1300 1000 900 800 700 600 500 400
Compressive Strength MPa≥ 7 5 3.5 3 3 2.5 2 1 0.5
Reheating Linear Change Rate≤3%×2h testing temperature°C 1400 1350 1350 1300 1250 1250 1200 1150 1150
Thermal Conductivity   0.6 0.55 0.4 0.35 0.35 0.3 0.25 0.2 0.2
（350±25°C）W/m·k≤

APPLICATIONS

PACKAGING
