MEGEL-CG Series Aerogel Felt
MEGEL-CG Series Aerogel Felt
MEGEL-CG Series Aerogel Felt
MEGEL-CG Series Aerogel Felt
MEGEL-CG Series Aerogel Felt
MEGEL-CG Series Aerogel Felt
MEGEL-CG Series Aerogel Felt

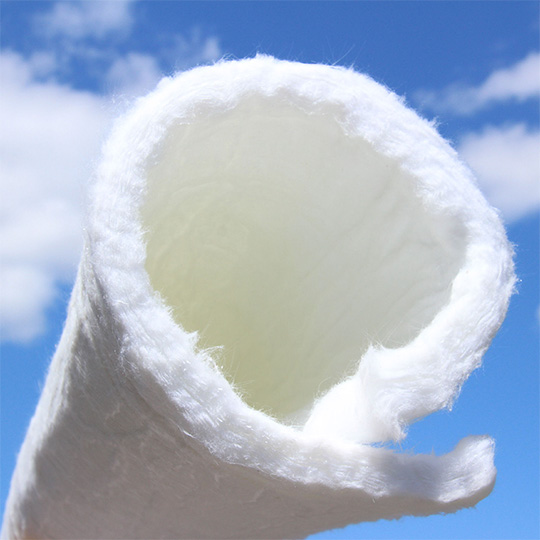

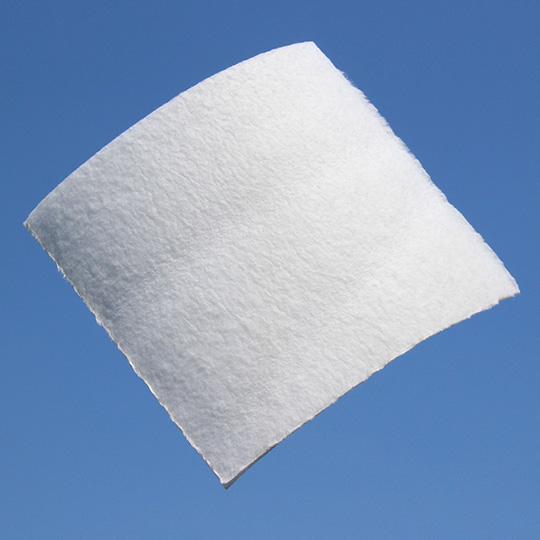

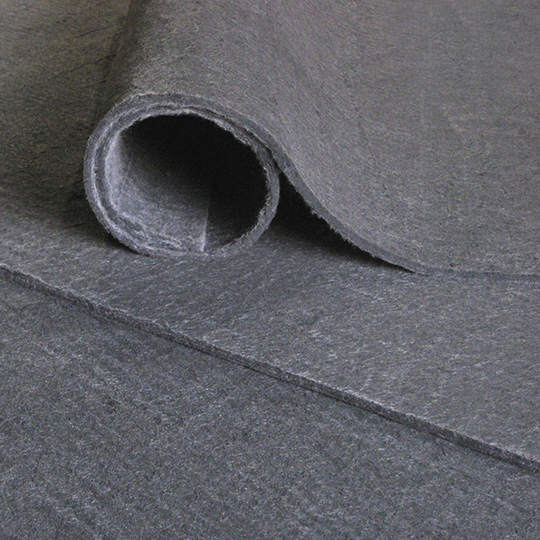

MG-CG series aerogel felt is made by special fiber yarn with the independently innovated nano-composite process. It has multiple features such as ultra-low thermal conductivity, excellent hydrophobicity, environmentally friendly, and non-toxicity, class A non-combustible, and easy to process, etc.
CHARACTERISTIC
TECHNICAL DATA
APPLICATIONS
PACKAGING
CHARACTERISTIC
MG-CG series aerogel felt is made by special fiber yarn with the independently innovated nano-composite process. It has multiple features such as ultra-low thermal conductivity, excellent hydrophobicity, environmentally friendly, and non-toxicity, class A non-combustible, and easy to process, etc. MG-650 is the best thermal insulation material for industrial pipeline insulation, tank insulation, automobile fire-proof insulation material, and building insulation. MG-200 has absolute advantages in the field of the cryogenic system since its characteristics of low temperature (-200°C).
TECHNICAL DATA
Product Model MG-CG-650 MG-CG-200 Standardization
Maxtemp.(℃) 650 -200~125 ASTM C411-2011
Thermalconductivity
(25℃)(W/m·K)
≤0.020(25°C) ≤0.011(-160°C) GB/T 10295-2008
Thickness (mm) 5/10
(3, 6 customizable)
5/10 Thickness gauge
Hydrophobic(%) 99.9 98.8 GB/T 10295-2011
Combustionperformance A2 GB8624-2012
Density(kg/m³) ≤220 GB/T 5480-2008
Color White/Gray-blue White /
Width (mm) 1500
Package Packed in rolls or cartons


















low temperature insulation (-200°C) in cryogenic system.
APPLICATIONS
(1)Automobiles fireproof and thermal insulation
(2)Construction &building insulation

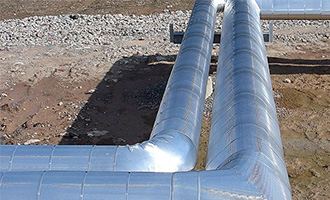

(3)Petrochemical steam pipelines
(4)Insulation for storage tanks, containers and other equipment

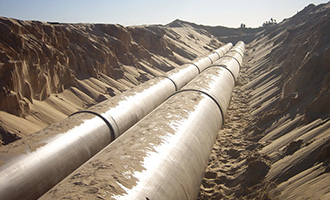

(5)Prefabricated insulation pipes

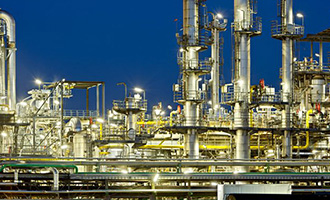

(6)Power plants and petrochemical plants pipeline insulation
(7)Cryogenic equipment or pipelines: LNG storage and transportation, liquid nitrogen and liquid oxygen storage and transportation
PACKAGING

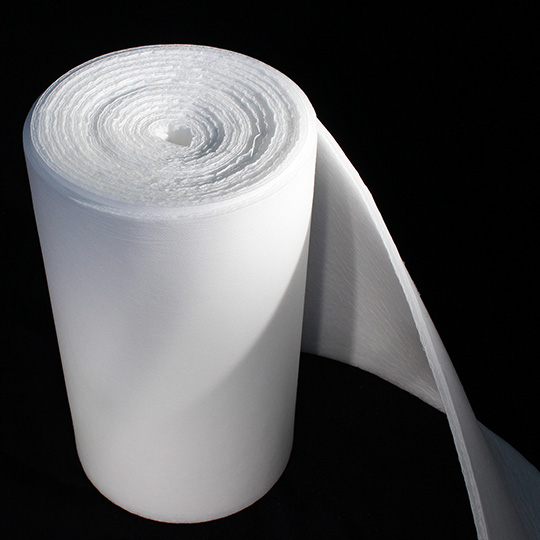

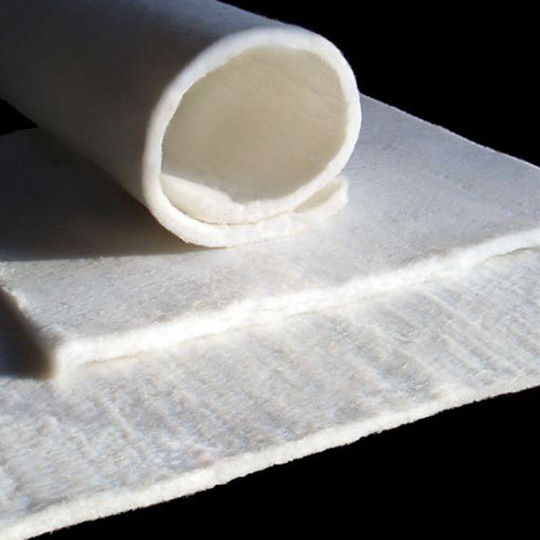

The product is packed in rolls or boxes. We recommend storing the product in closed containers under dry conditions and to protect the material from volatile substances. Do not rub or shake the aerogel felt to prevent falling off the aerogel powder.
