METHERM CS 650 microporous calcium silicate products
METHERM CS 650 microporous calcium silicate products

METHERM CS 650 microporous calcium silicate products

CHARACTERISTIC
TECHNICAL DATA
APPLICATIONS
PACKAGING

CHARACTERISTIC

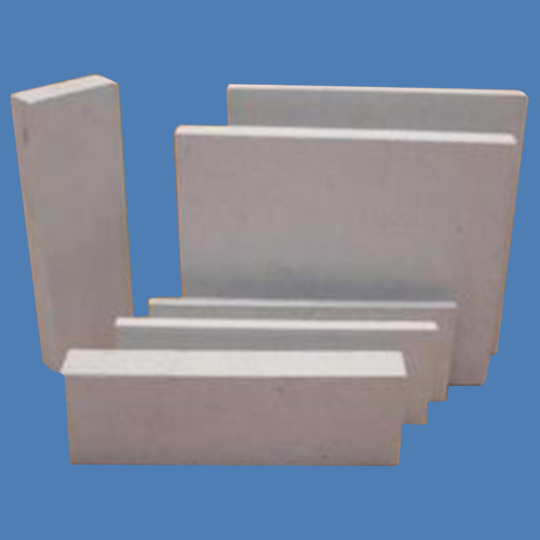

Non-asbestos microporous calcium silicate product (temperature resistant 650°C ), the main chemical structure is tobemorite, with low thermal conductivity, high strength, high temperature, non-flammable, easy to process, no corrosion, no pollution, etc. features, used in electric power, heat pipes, chemical, metallurgical and other industries, equipment, thermal lines, boiler bodies, kiln bodies. In recent years, it has been widely used in the direct heating of steel pipes, plastic steels and glass-reinforced plastics for heating pipes of thermal power plants, and can be processed into shaped products.

TECHNICAL DATA

Technical Index unit HC-230 HC-250
Bulk density Kg/m³ 230(±10%) 250(±10%)
Compressive strength MPa 0.50 0.60
Flexural strength MPa 0.30 0.45
Thermal conductivity W/(m.k) 0.06 0.062
Maximum operating temperature °C 650 650
Linear shrinkage % 2 2

APPLICATIONS

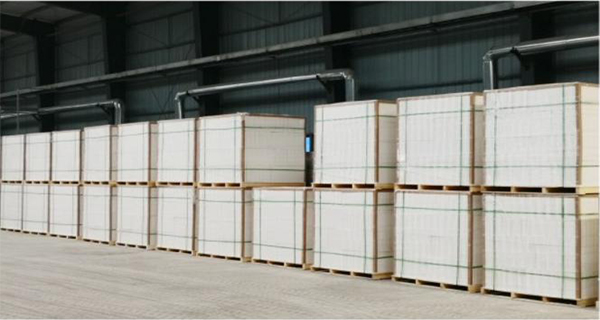

PACKAGING

Product Specification and Dimension Tolerance
Name Length(mm Width(mm Thickness(mm Inner diameter
Flat 1000±5 500±5 30-70±5 /
Curved plate 1000±5 500±5 30-70±5 customer-design
