METHERM MD  composite silicate product
METHERM MD  composite silicate product

METHERM MD composite silicate product

CHARACTERISTIC
TECHNICAL DATA
APPLICATIONS
PACKAGING

CHARACTERISTIC

The composite silicate insulation product is a new type of thermal insulation material. The product consists of high quality natural mineral magnesium silicate, chemical additives and high temperature binder, and were made through pulping, filling, shaping, drying, finished product, packaging, etc.process. It is a kind of electrostatic micro-inorganic thermal insulation material with closed microporous network structure combined with solid matrix, compounding a certain amount of auxiliary raw materials and fillers and adding quantitative chemical additives; using new technology and using new technology.

The product has the characteristics of high temperature resistance,thin material, cost saving , no pollution, long service life and convenient construction, which is unmatched by traditional insulation materials. The composite silicate series products have been widely used in the thermal insulation of petrochemical, electric power, chemical construction, heat supply , heating, air conditioning, refrigeration and other industries, and are currently one of the most ideal insulation materials.

TECHNICAL DATA

Technical Indicators unit MD
Bulk density Kg/m 65-75
tensile strength MPa 0.05
Balanced vertical and horizontal
PH value   7月8日
Thermal Conductivity W/m.k 0.024-0.038
Hydrophobic rate % 98
Flammability   Non combustible
Scope of adaptation °C -740
Elastic Recovery rate % 98

APPLICATIONS

PACKAGING

Product Specification
Product Specification Length Width Thickness
Board 1000±5 500±5 30-70±5
Felt 1000±5 500±5 30-70±5

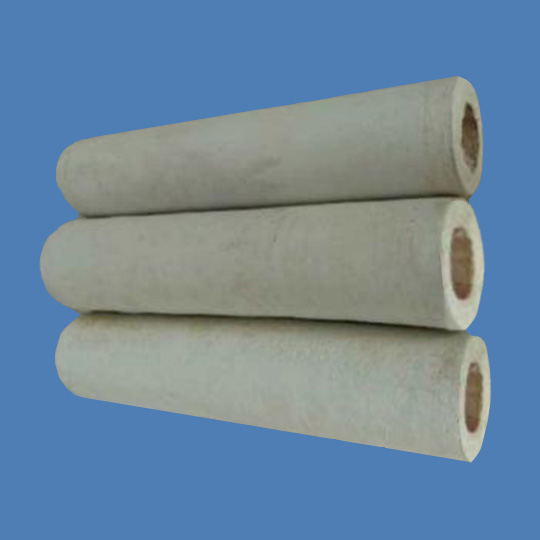

Tube Shell 1000±5 1000±5 30-120±5
