Aluminum coil for PP caps

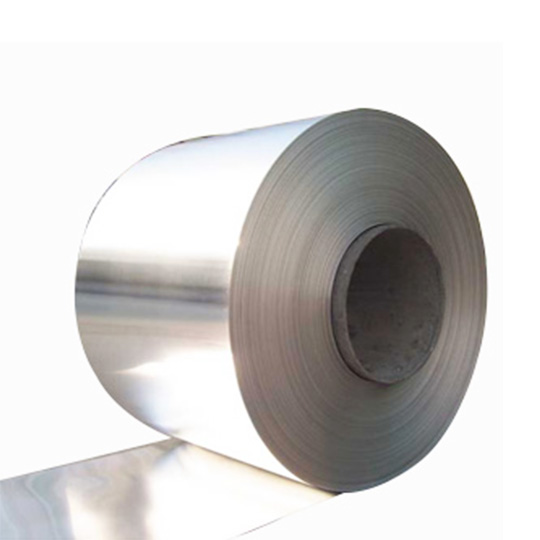

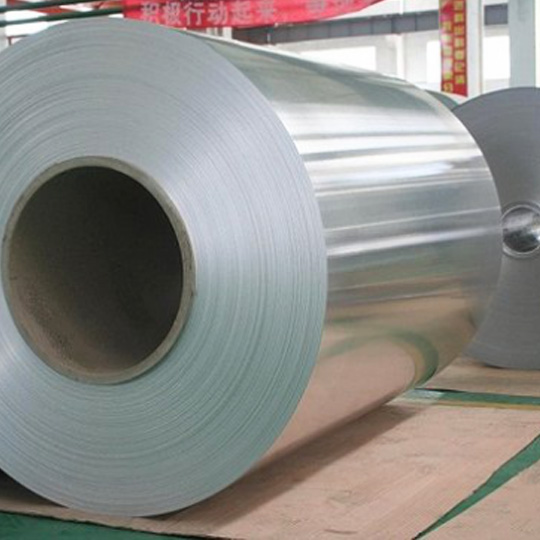

AA8011/3105 H14/H16 aluminum coil / sheet is the base stock material for bottle cap manufacturing.

1. Good plasticity capable of deep drawing up to 75mm high cap, free of "orange peel" defects after stamping.

2. Hot Rolled, deep draw quality, neutralized, mill finish, free from oil grease, fine edge lines.

3. Precise thickness tolerance low to ±0.005mm.

Send Email Chat Now

CHARACTERISTIC

TECHNICAL DATA

APPLICATIONS

PACKAGING

CHARACTERISTIC

AA8011/3105 H14/H16 aluminum coil / sheet is the base stock material for bottle cap manufacturing.

Properties

Thickness:0.16-0.35mm.

Width:150-1200 mm, Coil ID:405/505mm paper core (when coil formation).

TECHNICAL DATA

Alloy	Temper	Thickness（mm）	Performance Data			Earing Rate	Application
Alloy	Temper	Thickness（mm）	Yield Strength （Mpa）	Tensile Strength（MPa）	Elongation（%）	Earing Rate	Application
8011	H16	0.16-0.35	136-140	142-157	2.0-4.0	≤2%	low strength, used for wine bottle cap and medicine bottle lid
3105	H14	0.15-0.30	160-180	170-190	2.0-2.5	≤2%	Medium strength, used for pressure vessel cover

APPLICATIONS

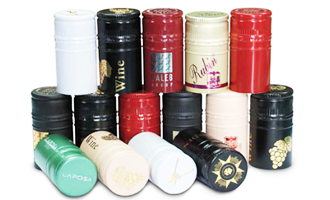

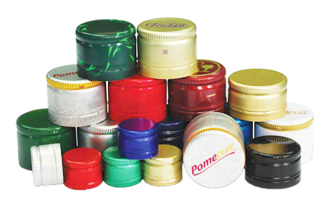

8011/3105 ROPP cap stock is applied to packaging of beverages, wine, food, cosmetics, medicines, etc. The products are mainly exported to the European and American market.

PACKAGING

8011/3105 aluminum sheet will be packed by wooden pallet with net weight 0.8-1 ton per each pallet. 20'GP FCL can full-load 20 tons by putting 2 layers of pallets of products.
