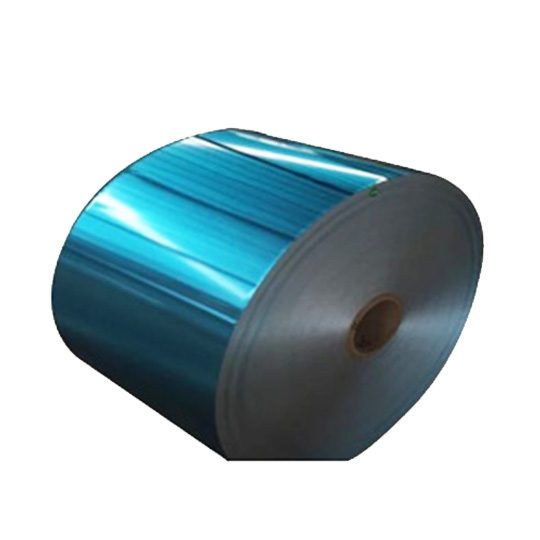

Aluminum foil for air conditioning

With the development of technology, have air conditioning foil further thinning of the trend in the state extremely thin, aluminum foil to have good formability.

1. non-toxic and safe in quality.

2. Convenient for heating, no harmful substances will be produced after heating.

3. Easy to shape, convenient to seal, and ensure food hygiene.

4. Strong barrier, sealed can protect food flavor, and extend the food shelf life.

Send Email Chat Now

CHARACTERISTIC

TECHNICAL DATA

APPLICATIONS

PACKAGING

CHARACTERISTIC

With the development of technology, have air conditioning foil further thinning of the trend in the state extremely thin, aluminum foil to have good formability. Their organization and performance must be even, metallurgy less vulnerable, small anisotropic, also requires high strength, good ductility and even thickness, good straightness.

Hydrophilic aluminum foil is treated with a special process by coating a hydrophilic layer on the surface thereof, then condensed water will rapidly spread on the hydrophilic aluminum foil, and thus it will not condense into water droplets, and increase heat exchange area, speeding up the cooling and heating speed, and therefore effectively avoiding the noise caused by the condensed water obstructing the air flow.

TECHNICAL DATA

Alloy	Temper	Thickness	Width	I.D.	Coating Thickness Both Sides	Color	Corrosion Resistance
8011	O,H22,H24	0.07mm-0.2mm	50mm-1250mm	76mm; 152mm; 305mm; 505mm	1um-3um	Blue; golden; dark; green; silver	STM B117≥ 500h=10
3102					1um-3um

Alloy	Temper	Thickness(mm)	≥Tensile Strength (N/mm2)	≥Elongation (%)
8011	O	>0.04-0.09	≥60-120 Mpa	≥4
		>0.09-0.14	≥60-120 Mpa	≥13
		>0.14-0.20	≥60-120 Mpa	≥15
	H22	>0.09-0.14	≥90-150 Mpa	≥5
	H22	>0.14-0.20	≥90-150 Mpa	≥6
	H24	>0.09-0.14	≥120-170 Mpa	≥4
	H24	>0.14-0.20	≥120-170 Mpa	≥5

APPLICATIONS

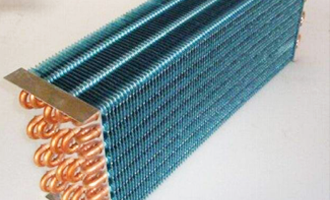

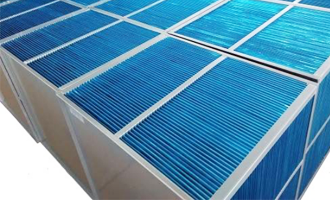

Hydrophilic aluminum foil is used for manufacturing air conditioner heat exchanger with special materials of purpose; Now close water foil accounted for 50% of the overall air conditioning foil, its use ratio will rise further.

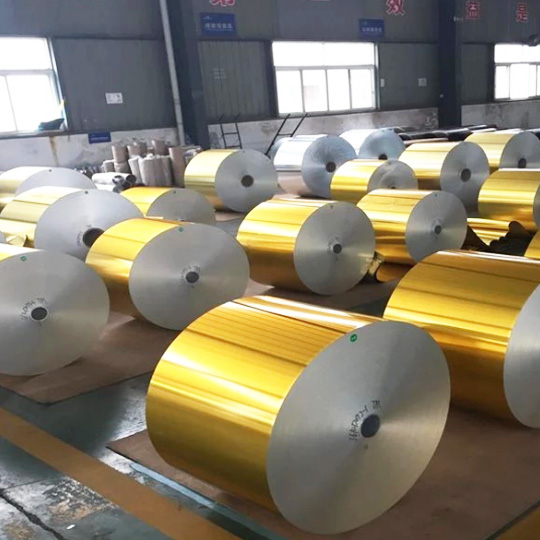

PACKAGING

Plastic film can be covered and will be packed by wooden pallet or wooden case.
There are two kinds of packaging, which are eye to wall and eye to sky.
Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′container.
