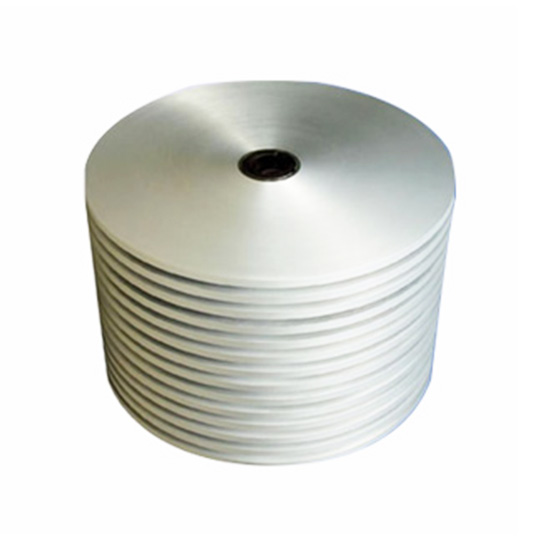

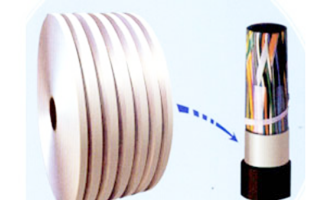

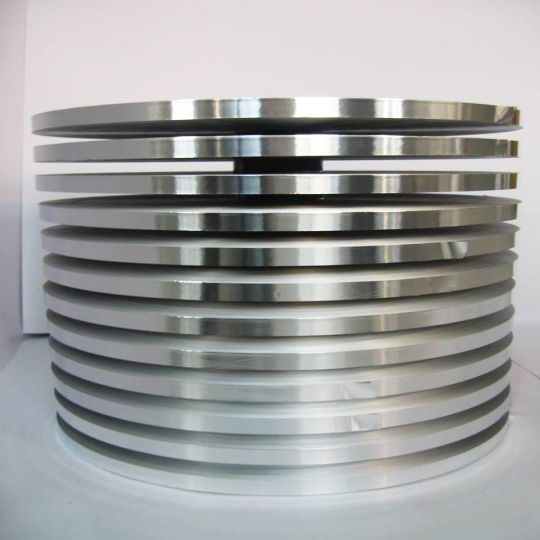

Aluminum strip for cable

Aluminum strip for cable

Color Coated Aluminum Coil, painted aluminum coil, colored aluminum sheets

1. Excellent weathering and UV properties

2. Outstanding color and gloss retention

3. Splendid corrosion and chemical resistance

Send Email Chat Now

CHARACTERISTIC

TECHNICAL DATA

APPLICATIONS

PACKAGING

CHARACTERISTIC

Color Coated Aluminum Coil, painted aluminum coil, colored aluminum sheets

Shape	Aluminum coils or sheets
Alloy	1000, 3000, 8000 series
Temper	H16, H18, H24, H26, H44.
Surface	Embossed, mill finish, coated
Color	RAL or Customized
Process	Single or double sides coated etc
Width	200-1200mm
Thickness	0.3mm-2.5mm
Diameter	Standard dia:1100mm
Diameter	Interior dia:150mm, 405mm,505mm
Unit Weight	200-2000kg per coil
Technology	Hot rolling, cold rolling
Delivery	15 - 25 days after payment according your order

TECHNICAL DATA

PE Thickness	Over 18 micron
PVDF Thickness	Over 25 micron
Gloss	10-90%(EN ISO-2813:1994)
Coating Hardness (pencil resistance)	More than 2h
Coating Adhesion	5J(EN ISO-2409:1994)
Impact Resistance	No peeling or cracking(50 kg/cm,ASTMD-2794:1993)
Flexibility (T-bend)	≤2T
MEK Resistance	More than 100

APPLICATIONS

1. For constructional exterior curtain walls, aluminum composite panel.
2. Widely used in exhibition, stores, offices, banks, hotels, restaurants and apartments.
3. Decorative renovation for storey-added old buildings, facades, roofing.
4. Indoors decoration for interior walls, ceilings, bathrooms, kitchens, balconies and subway.
5. Advertisement board, display platforms, billboards and signboards.
6. Wallboard and ceilings for tunnels

PACKAGING

1.Standard seaworthy exporting carton.
2. Wooden pallets on the bottom.
3. Waterproof plastic package.
4. Packing paper cover.
5. Or as required.
