Kingpin Trailer

kingpin trailer 50 mm （2”）and 90 mm（3.5”）

Send Email Chat Now

CHARACTERISTIC

TECHNICAL DATA

APPLICATIONS

PACKAGING

CHARACTERISTIC

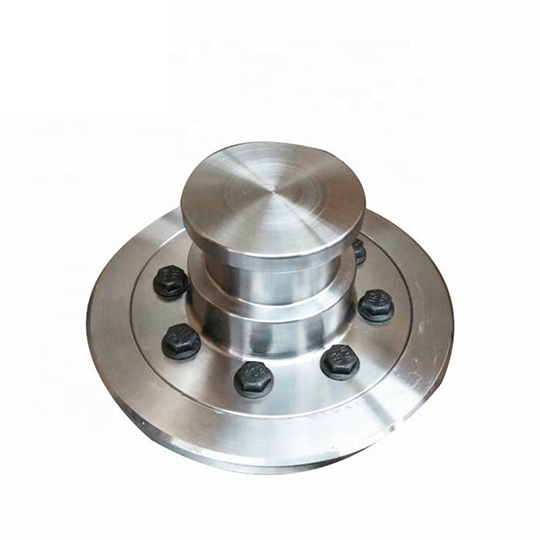

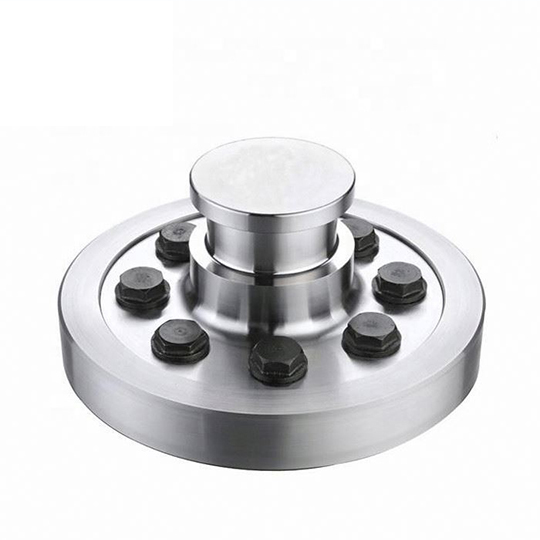

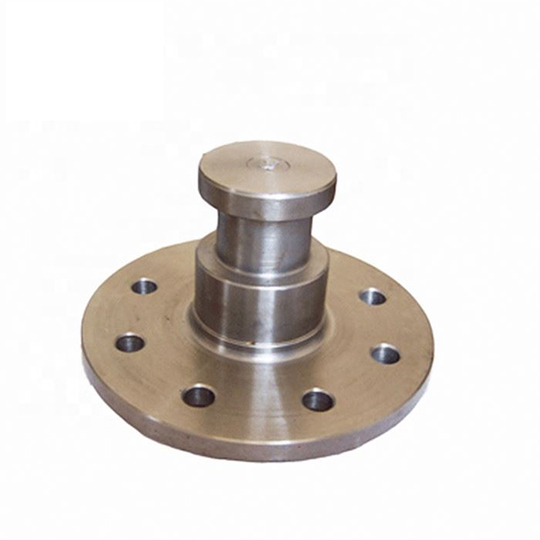

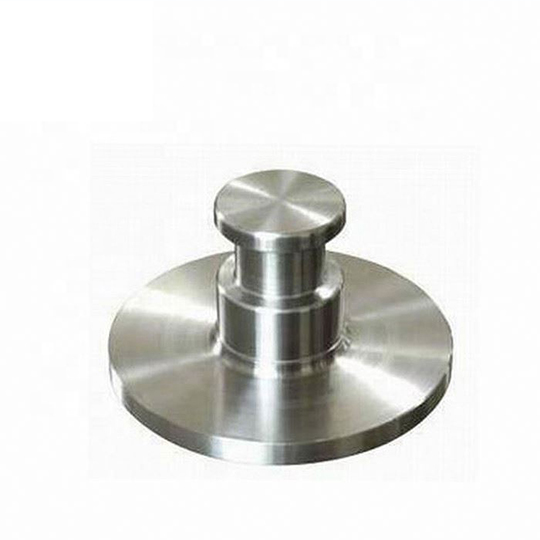

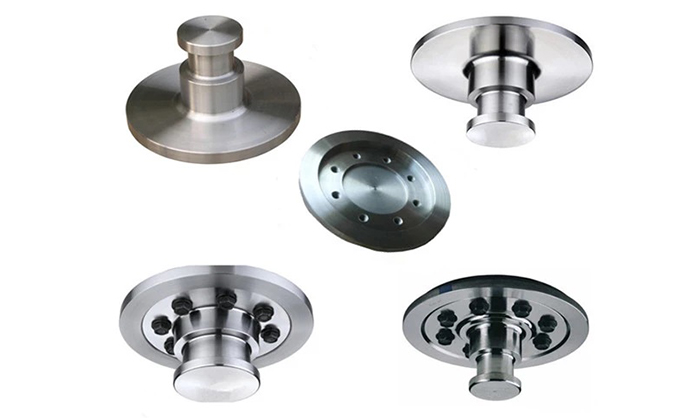

King pin is a standard metal part used in semi-trailer to connect tractor and trailer. according to the diameter of the traction pin can be divided into 50 mm （2”）and 90 mm（3.5”）
1.Material : 40CR/steel
2.Material Hardness : can be reached 32-36HRC
3.Material grade : after debugging can reach 4.9.
4.Plate thickness : 20mm(can be customized according to customer requirements)
5.Note:The bolt torque setting 190NM

TECHNICAL DATA

	Item	Thickness	D-Value
2"Welded kingpin	ME-H5010	10mm	108
	ME-H5012	10mm	108
3.5"kingpin	ME-H9010	10mm	174
	ME-H9012	12mm	174
2"Bolt-in kingpin Assy	ME-Z5010	10mm	162
	ME-Z5012	12mm	162
3.5"Bolt-in kingpin Assy	ME-Z9010	10mm	174
	ME-Z9012	12mm	174
Place of Origin	jiaozuo, China (Mainland)
Brand Name	MEAP
Use	Trailer Parts
Parts	Trailer Locks
OEM No.	0450.A.000.01
Max Payload	100Ton
Size	2’’/ 3.5’’
Type	Bolted, Welding, Compaction
Plate Thickness	8mm,10mm,12mm,14mm,16mm
Material	20CrMnTi
Color	Silver
Certificate	ISO9001/TS16949/

APPLICATIONS

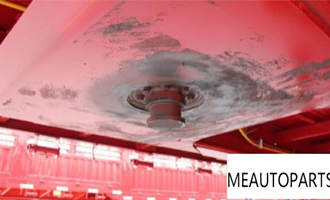

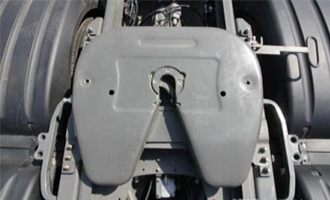

Application for all kinds of model truck.

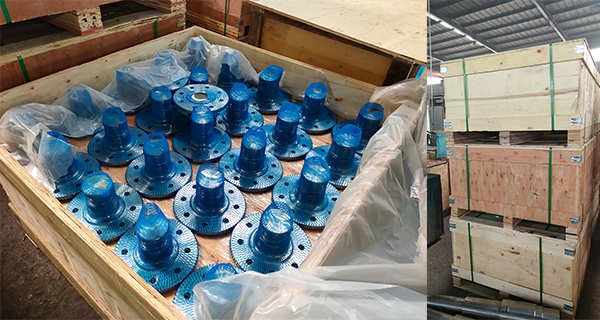

PACKAGING
