Cold Resistant Conveyor Belt

Send Email Chat Now

CHARACTERISTIC

TECHNICAL DATA

APPLICATIONS

PACKAGING

CHARACTERISTIC

The product selects Cotton Canvas,Nylon Canvas or Polyester Canvas as the framework material,fabric specs to be EP80~EP630, NN80~NN630, CC56~CC65. Rubber cover selects a blend of NR and BR,which has the properties of high elasticity, impact resistance, cold resistance etc.It can work normally under the conditions of -60℃.

TECHNICAL DATA

Item		Index
		H(Laceration resistant)	D(Anti-abrasion)	L(Ordinary)
Tensile strength (Mpa )		≥24	≥18	≥15
Elongation at break (%)		≥450	≥400	≥350
Aging experiment	Change rate of tensile strength (%)	±25	±25	±25
(70℃,7d)	Change rate of elongation at break (%)	±25	±25	±25
Abrasion (mm3 )		≤120	≤100	≤200
Cold resistant coefficient at elongate	C1(-45℃)	≥0.3
	C1(-60℃)	≥0.2
Note:
C1-temperature condition is -45℃~+50℃
C2-temperature condition is -60℃~+50℃

Note:
1.Cold resistant conveyor belt can be divided into three types according to the properties of cover: Laceration resistant(H), Anti-abrasion type(D)and Ordinary type(L).

2.According to the different cold resistance,it can be divided into two types of C1 and C2:
C1-Working temperature:-45~+50℃; C2-Working temperature: -60~ +50℃.

APPLICATIONS

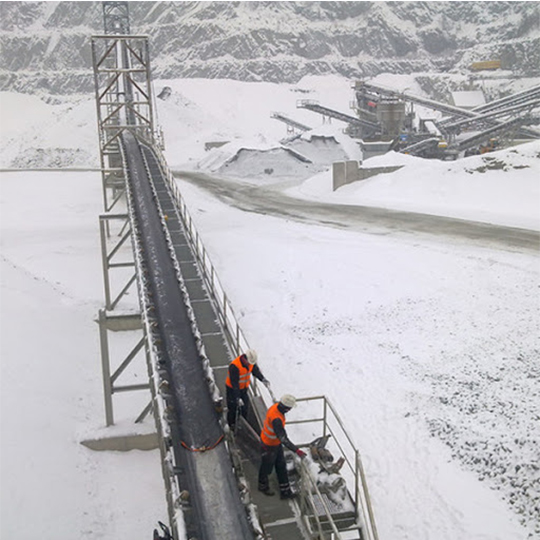

The cold resistant conveyor belt can be used under the condition which temperature is above -60℃,suitable for conveying material outdoors in freezing area,cold storage etc.

PACKAGING
