Cotton Canvas (CC) Conveyor Belt

Send Email Chat Now

CHARACTERISTIC

TECHNICAL DATA

APPLICATIONS

PACKAGING

CHARACTERISTIC

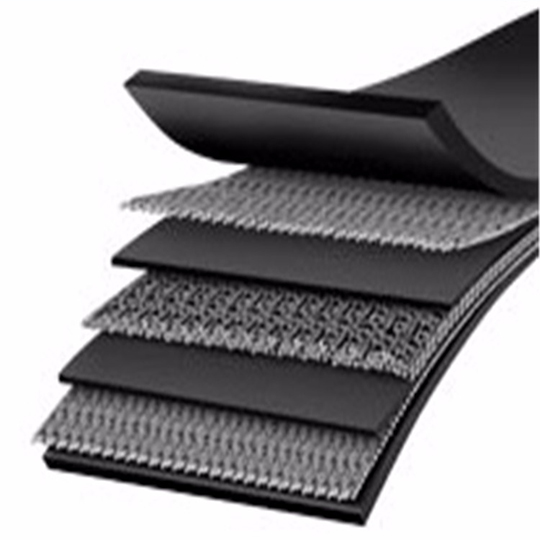

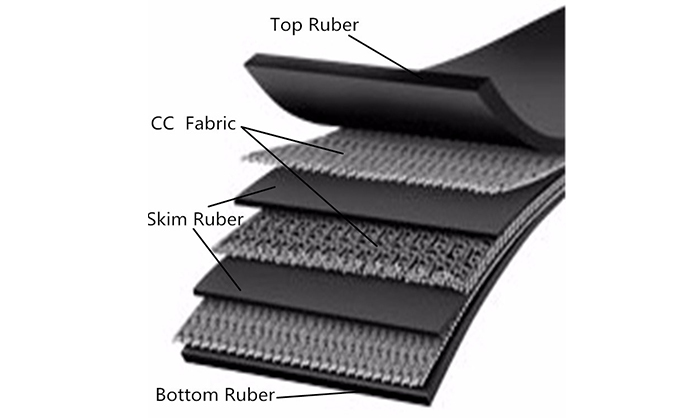

CottonCanvas conveyor belts, also called CC conveyor belts, its framework material is woven by Cotton fibers both in warp and in weft.It has relatively small deformation under high temperature conditions. Suitable for short distance and light load transportation of materials.

TECHNICAL DATA

Fabric Type	Fabric Code	Single Fabric Thickness(mm)	Single Fabric Strength(N/mm)	Cover Thickness (mm)		Number of FabricPly	Width (mm)	Production Length (m/roll)
				Top	Bottom
Cotton (CC)	CC56	1.10	56	3-12	1.5-4.5	2-6	350-2200	≤300
Polyester Cotton (TC)	TC70	1.00	70

Note: It can be customized according to customers’ requirements.

APPLICATIONS

Polyester Cotton conveyor belts is the upgraded product of the Cotton conveyor belt. Its framework material is woven by Polyester Cotton fibers in warp and Cotton fibers in weft. Its comprehensive physical and mechanical characteristics are obviously better than those of cotton conveyor belt, especially the belt body is thinner and lighter, the belt has better impact resistance and thus the belt has better performance and can reduce energy and material consumption for users.
