CHARACTERISTIC

TECHNICAL DATA

APPLICATIONS

PACKAGING

CHARACTERISTIC

Use EPDM or SBR as cover rubber, and useheat resistantPolyester or Cotton canvas as the framework material. This kind of belt can use the heat resistant woven glass fabric between cover rubber and the framework material to improve the working life of the belt.

TECHNICAL DATA

Item		Type
		T1	T2	T3	T4
		Test Temperature
		≤100℃	≤125℃	≤150℃	≤175℃
		Change Range allow
Hardness	Difference before and after aging (IRHD)	+20	+20	+20	+20
Hardness	Maximum value after aging (IRHD)	85
Tensile Strength	Change rate after aging %	-25	-30	-40	-40
Tensile Strength	Minimum value after aging (MPa)	12	10	5	5
Elongation at break	Change rate after aging %	-50	-50	-55	-55
Elongation at break	Minimum value after aging (%)	200	200	180	180

APPLICATIONS

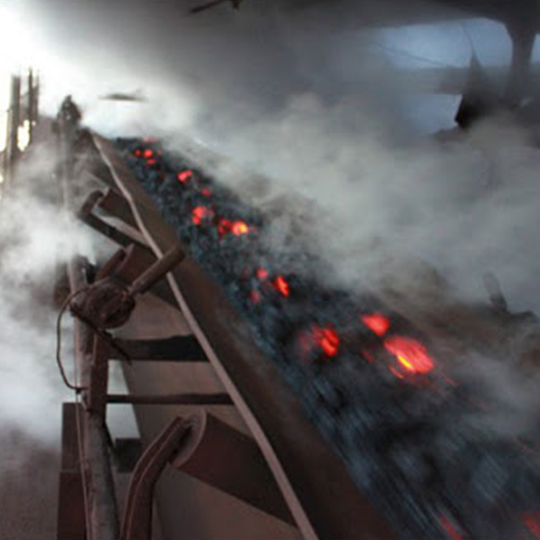

Suitable for conveying high temperature materials such as sintering ore, hot coke, cement clinker, hot casting,etc. which is used in metallurgy, cement, chemical industry and so on.

PACKAGING
