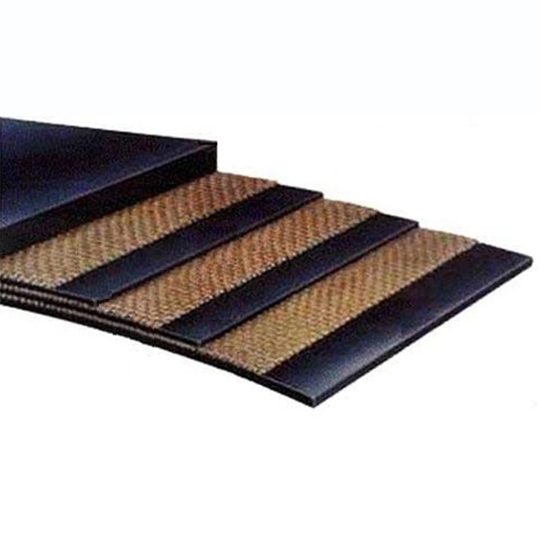

Nylon Fabric (NN) Conveyor Belt

Send Email Chat Now

CHARACTERISTIC

TECHNICAL DATA

APPLICATIONS

PACKAGING

CHARACTERISTIC

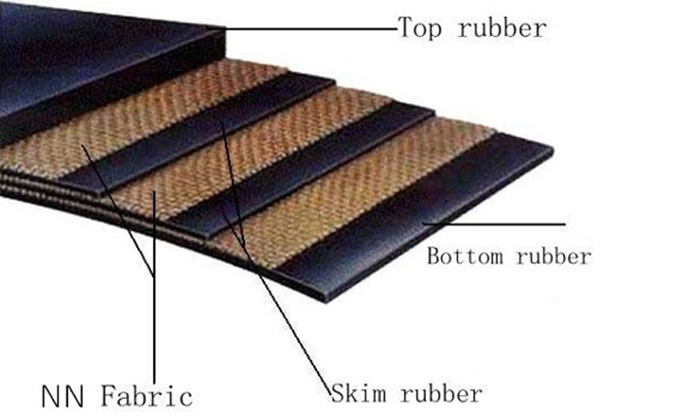

Nylon fabric conveyor belts, also called NN conveyor belts, its framework material is woven by Nylon fibers both in warp and in weft. It has advantages of good elasticity, high strength, good impact resistance, good flexibility, good groove-formed and small elongation,etc.

TECHNICAL DATA

Fabric Type	Fabric Code	Single Fabric Thickness (mm)	Single Fabric Strength (N/mm)	Cover Thickness (mm)		Number of Fabric Ply	Width (mm)	Production Length (m/roll)
				Top	Bottom
Nylon (NN)	NN100	1.0	100	2-12	0-5	2-10	350-2200	≤300
	NN125	1.0	125
	NN150	1.1	150
	NN200	1.2	200
	NN250	1.4	250
	NN300	1.6	300			2-6
	NN400	2.0	400
	NN500	2.5	500

Note: It can be customized according to customers’requirements.

APPLICATIONS

Suitable for conveying materials under the conditions of medium and longdistance,heavy load and highspeed, which is widely used in mines, metallurgy, architecture,ports, electricity, chemical industries, etc.

PACKAGING
