Polyester Fabric (EP) Conveyor Belt

Send Email Chat Now

CHARACTERISTIC

TECHNICAL DATA

APPLICATIONS

PACKAGING

CHARACTERISTIC

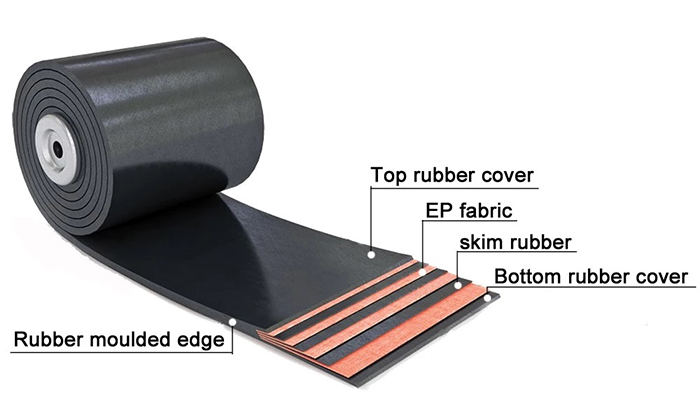

Polyester fabric conveyor belts, also called EP conveyor belts.Its framework material is woven by Polyester fibers in warp and Nylon fibers in weft. It has advantages of light in weight, high modulus,small elongation,good heat-resistance and good impact resistance,etc.

TECHNICAL DATA

Fabric Type	Fabric Code	Single Fabric Thickness(mm)	Single Fabric Strength(N/mm)	Cover Thickness (mm)		Number of FabricPly	Width (mm)	Production Length (m/roll)
				Top	Bottom
Polyester (EP)	EP80	0.9	80	2-12	0-5	2-10	350-2200	≤300
	EP100	1.0	100
	EP125	1.0	125
	EP150	1.1	150
	EP200	1.2	200
	EP250	1.4	250
	EP300	1.6	300			2-6
	EP350	1.9	350
	EP400	2.0	400
	EP500	2.5	500

Note: It can be customized according to customers’requirements.

APPLICATIONS

Suitable for conveying materials under the conditions of medium and longdistance,heavy load and highspeed, which is widely used in mines, metallurgy, architecture,ports, electricity, chemical industries, etc.

PACKAGING
