CHARACTERISTIC

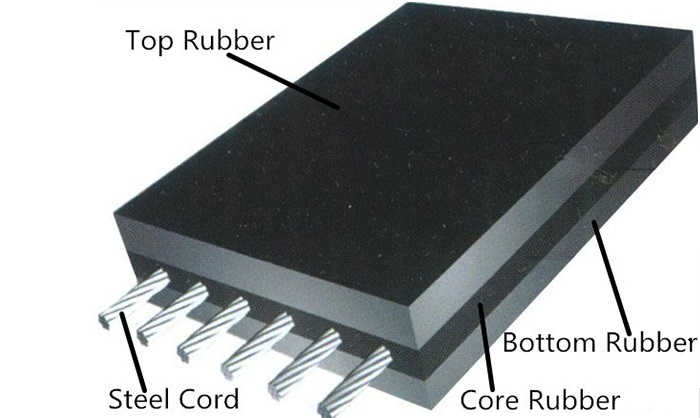

Steel Cord conveyor belt is composed of top rubber,bottom rubber,core rubber,side rubber and steel cord with a certain vertical distance. It has advantages of high tensile strength,good impact resistance,long service life,small elongation,good groove-formed performance,good flexibility,etc.

TECHNICAL DATA

Item	Belt Tensile Strength
Item	ST630	ST800	ST1000	ST1250	ST1600	ST2000	ST2500	ST2800	ST3150	ST3500	ST4000	ST4500	ST5000	ST5400
Longitudinal Tensile Strength N/mm	630	800	1000	1250	1600	2000	2500	2800	3150	3500	4000	4500	5000	5400
Maximum Nominal Diameter Of Steel Wire Rope (mm)	3.0	3.5	4.0	4.5	5.0	6.0	7.2	7.5	8.1	8.6	8.9	9.7	10.9	11.3
Steel Cord pitch(mm)	10	10	12	12	12	12	15	15	15	15	15	16	16	17
Steel Cord pitch(mm)	±1.5	±1.5	±1.5	±1.5	±1.5	±1.5	±1.5	±1.5	±1.5	±1.5	±1.5	±1.5	±1.5	±1.5
Top Cover Thickness (mm)	5	5	6	6	6	8	8	8	8	8	8	8	8.5	9
Bottom Cover Thickness (mm)	5	5	6	6	6	8	8	8	8	8	8	8	8.5	9
Width (mm)	Number of steel cord
800	75	75	63	63	63	63	50	50	50	50	-	-	-	-
1000	95	95	79	79	79	79	64	64	64	64	64	59	55	55
1200	113	113	94	94	94	94	76	76	76	77	77	71	66	66
1400	133	133	111	111	111	111	89	89	89	90	90	84	78	78
1600	151	151	126	126	126	126	101	101	101	104	104	96	90	90
1800	-	171	143	143	143	143	114	114	114	117	117	109	102	102
2000	-	-	159	159	159	159	128	128	128	130	130	121	113	113
2200	-	-	-	-	-	176	141	141	141	144	144	134	125	125

Note: Cover Thickness, Cord Diameter and Cord Pitch can be manufactured according to customer’s requirements.

APPLICATIONS

Suitable for high strength, long distance, and heavy load transportation of materials, which are widely used in coalmines, mines, ports, metallurgy, electricity, chemical industries, etc.
