Wear Liner

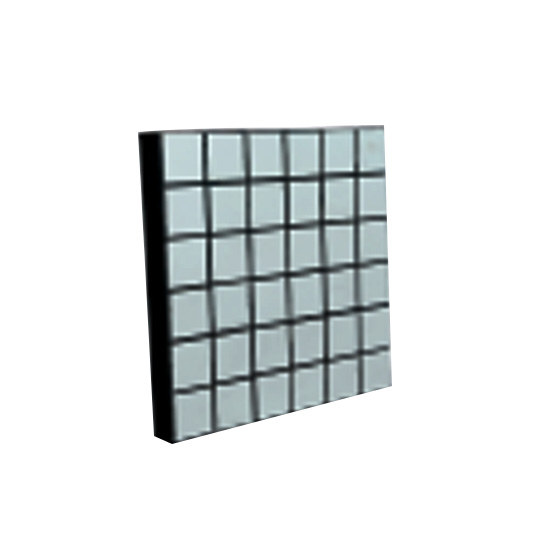

The Ceramic Liner is compounded by rubber or polyurethane, alumina ceramic tiles and steel backing plate through hot vulcanizing process.

Send Email Chat Now

CHARACTERISTIC

SUPERIORITY

APPLICATIONS

PACKAGING

CHARACTERISTIC

The Ceramic Liner is compounded by rubber or polyurethane, alumina ceramic tiles and steel backing plate through hot vulcanizing process. Cushioning rubber or urethane layer prevents ceramic tiles breakage.The thickness of complete liner, ceramic and rubber are determined on the basis of application, such as handled material lump size, height of fall, impact angle, etc.

SUPERIORITY

1) Excellent bonding: The ceramics, rubber and steel plate are permanently bonded through our
special molding and hot vulcanization process. Ceramics will stay in place until completely worn

2) Various sizes and configurations are available to meet the right impact level and
abrasion resistance for your particular application.

3) Standard size and non-standard sizes are all available.

4) Available with stud bolt and weldable installation methods or CN bonding layer

5) Ceramic polyurethane composite liners, rubber liners, polyurethane liners are also available

APPLICATIONS

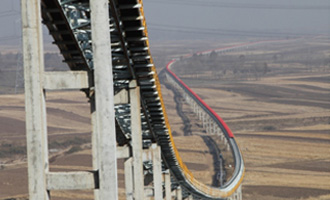

Ceramic liner is widely used in coal conveying, material conveying, pulverizing, ash removal and dust removal systems of thermal power, iron and steel, smelting, machinery, coal, mining, chemical industry, cement, port and wharf enterprises. It can select different types of products according to different needs.
