MEGEL- CB Series Super Thin Felt

The MEGEL-CB series is an ultra-thin insulation material made of aerogel composite ultra-thin fibers. According to different substrates, it can be divided into three types: GF/PF/ and POF. The thickness of the product is customizable, according to customer requirements.

Send Email Chat Now

CHARACTERISTIC

TECHNICAL DATA

APPLICATIONS

PACKAGING

CHARACTERISTIC

TECHNICAL DATA

Product Model	MG-CB-GF (glass fiber)	MG-CB-PF (polyester fiber)	MG-CB-POF (pre-oxygen silk felt)	Standardization
Thermalconductivity (25℃)	<0.025W/m·k	<0.025W/m·k	<0.020W/m·k	ASTMA411-2011
Maximumtemp.（℃）	400	100	400	ASTMA411-2011
Thickness (mm)	0.2-2	0.15-1(±10%)	2-3.5 (±10%)	Thickness gauge
Size(mm) (Customizable)	Slice/roll	Slice/roll	Slice/roll	/
Flame-retardant level	UL94-V0	/	UL94-V0	GB/T 2408-2008
Color	White	White	Black	/
Hydrophobic	/	Yes	Yes	/
Package	Packed in rolls or cartons

Note: The above is an average data measured by the general test method. It is for reference only and cannot be used as the product quality assurance value. With the product update, the data will be adjusted, and please refer to the actual index in the contract.

APPLICATIONS

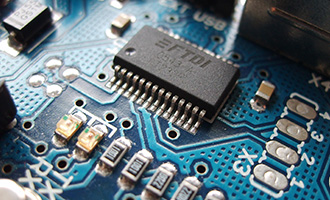

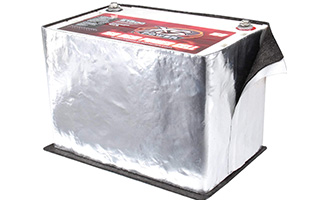

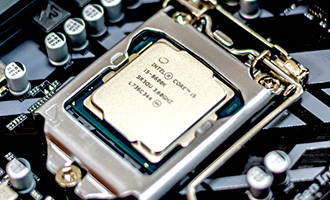

The product is suitable for the insulation of power battery structure, cell protection, battery insulation, cooling system, smartphones, laptop, wearable devices, and other electronic products.

PACKAGING

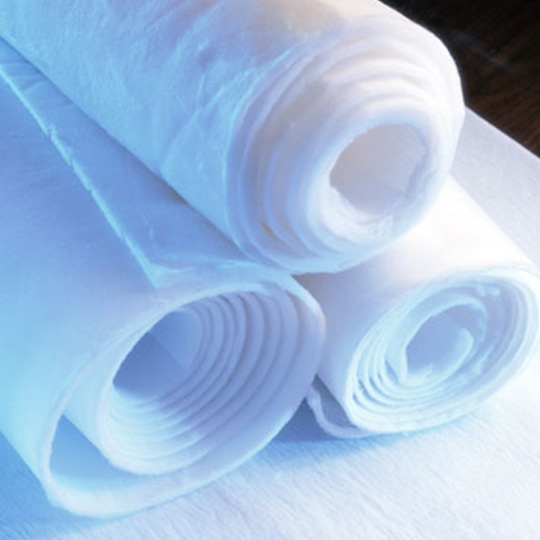

Packed in rolls or boxes. We recommend storing the product in closed containers under dry conditions and to protect the material from volatile substances. Do not rub or shake the aerogel felt to prevent falling off the aerogel powder.
