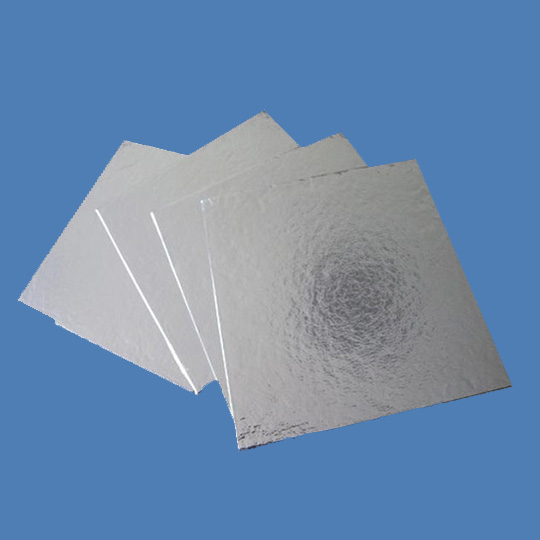

MEVAC VIP FS

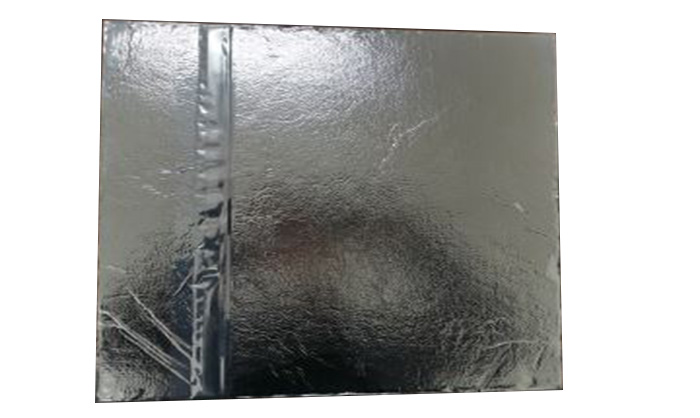

MEVAC VIP FS is the vacuum insulation panel basing on our M 200 fumed silica core material which consist mainly inorganic fumed silica, opacifiers and fibers. It has a great thermal conductive performance and long-term service life.

Send Email Chat Now

CHARACTERISTIC

TECHNICAL DATA

APPLICATIONS

PACKAGING

CHARACTERISTIC

Vacuum insulation panel (VIP) is a kind of thermal insulation material. The air evacuated rigid core is sealed with the film to prevent heat leaks. Comparing with the conventional insulation material, VIPs provide five to ten times higher thermal insulation performance at the same thickness. It often used in the industries that required for limited space, such as construction, walls, freezers, cold chain logistics, and more.

TECHNICAL DATA

Item	Unit	Data
Temperature range	°C	-40 up to 70
Bulk Density	kg/m³	195-200
Core Material	/	Fumed Silica
Short-term withstand 110℃	min	≤30
Thermal conductivity (GBT 37608-2019 @ 25±2°C)	W/m.K	~ 0.004 (no more than 0.0045)
Size Tolerance	mm	≤500 +1/-3
	mm	＞501~1000 +1/-4
	mm	＞1000 +1/-6
Thickness Tolerance	mm	≤30 +1/-2
Thickness Tolerance	mm	＞30 +2.0/-2
Tensile Strength Perpendicular to Surface (GB/T 30804)	KPa	≥80
Color	/	Silver

APPLICATIONS

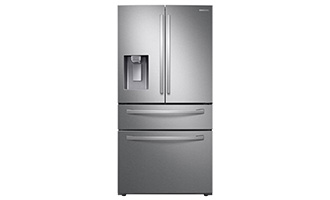

1.Refrigerators and freezers

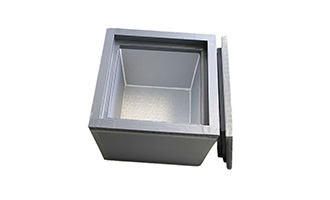

2.Thermal packaging & container for pharmaceutical and cold chain logistics
3.Construction & buildings (Such as exterior facades and floors)

PACKAGING

AVAILABLE DIMENSIONS：

Sizes: 1000x600, 500x600 mm
Thickness: 5–50 mm
Customized

The board products must be handled and stored in dry and ventilated conditions.

MEVAC standard sized VIP (1000*600*25mm) would be packed by honeycomb pallet carton with 76 pcs quantity in each pallet. And the size of pallet would be 1120x1420x1100 mm and 20’ GP FCL can full-load 16 pallets. The packaging also could be customized according to your order.
